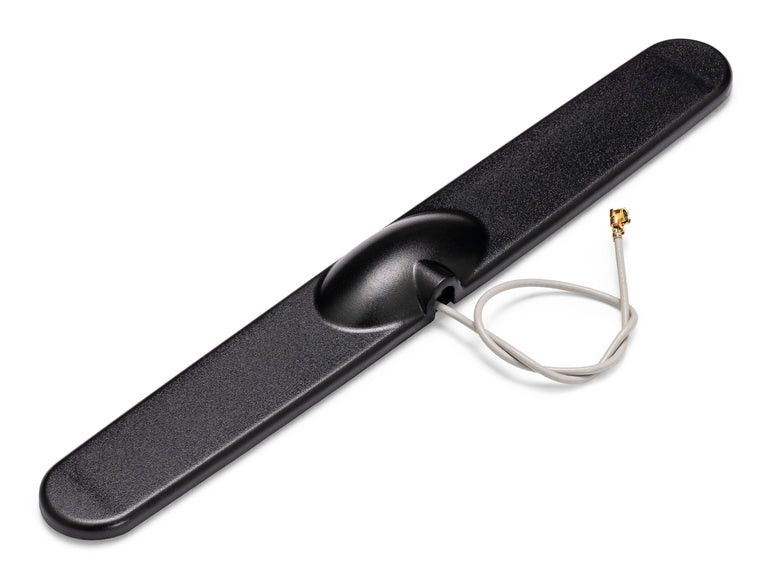

One solution to connect your smart device to the cloud. The antenna supports GSM 850 / 900 / 1800 / 1900 MHz and UMTS bands. Designed for small devices, this antenna works as a wireless terminal, gateway or endpoint. It is a "groud plane" ground-independent model placed in a durable waterproof plastic housing. It can be used outdoors in all telemetry projects as well as in discreet vehicle installations. The antenna has a high-quality adhesive surface that allows it to be attached to any surface. Note that the antenna is not intended to be mounted on large metal surfaces, as this affects the antenna coverage. It works excellently with other materials such as glass, plastic, wood or cardboard.
List of compatible Arduino boards
The following official Arduino boards support this penta-band antenna:
- Arduino MKR FOX 1200
- Arduino MKR WAN 1300
- Arduino MKR WAN 1310
- Arduino MKR GSM 1400
Technical specifications
| BAND |
Gain |
VSWR |
Impedance |
Polarization |
| GSM 850 (824-894 MHZ) |
<0 dbi |
<2 |
50 OHM |
linear |
| GSM 900 (890-960 MHZ) |
<1 dbi |
<2 |
50 OHM |
linear |
| GSM 1800 (1710-1880 MHZ) |
<1 dbi |
<2 |
50 OHM |
linear |
| GSM 1900 (1850-1990 MHZ) |
<0 dbi |
<2,2 |
50 OHM |
linear |
| UMTS (1900-2200 MHZ) |
<0 dbi |
<2,5 |
50 OHM |
linear |
Other features:
- Dimensions: 130x16x5 mm
- Cable length: 120 mm / 4.75 inches
- Weight: 1 gram
- Connector: micro UFL
- Housing: plastic
- Mounting: double-sided tape
