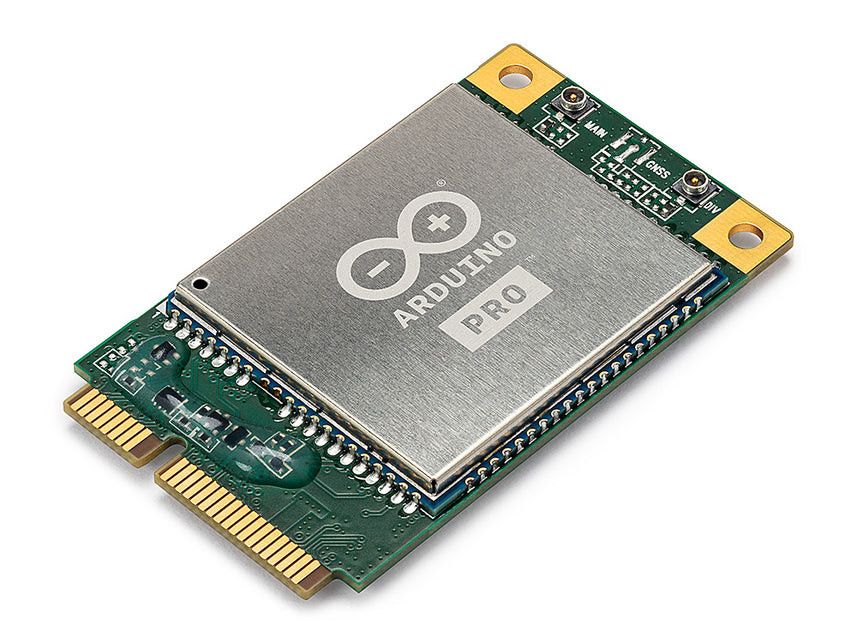

With the high-end Arduino Pro 4G module you can expand connectivity features and unlock the full potential of your projects without replacing your Portenta board.
The modem, equipped with Quectel’s robust Cat.4 modem, ensures fast data transfer and high bandwidth for quick uploads and downloads even in the most remote locations. Secure data transfer and long-range coverage make it ideal for challenging environments.

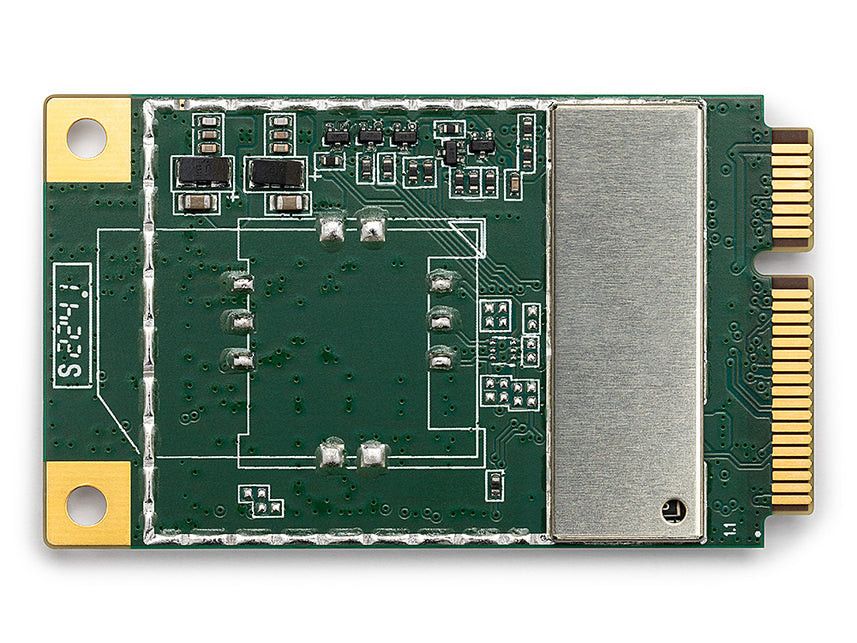

It is developed in the widely accepted mini PCIe form factor, so it is easy to integrate into a variety of projects.
In addition to a reliable 4G connection, the Arduino Pro 4G Module guarantees compatibility with 2G and 3G networks worldwide.
Main features
- Add 4G connectivity and positioning to the Portenta product family
- Ensures reliable and fast data transfer even in remote locations
- Enables long-range coverage both indoors and outdoors
- Change connectivity features without swapping the board
- Reduce infrastructure investments compared to traditional solutions
- Deploy your product in multiple countries by leveraging global network coverage
- Send SMS messages and set real-time alerts in case of emergencies
- Take advantage of the widely used Mini PCIe form factor
Applications
The Arduino Pro 4G module enables your devices to connect to the Arduino Cloud, making fault analysis, firmware updates and remote maintenance easier and faster than ever. Do you have a larger project? The Arduino Pro 4G module can help you monitor the safety conditions of an entire building: regularly track structural deformation, temperature, humidity levels and other critical parameters without traveling to the site yourself — and take action when needed.
Technical specifications
| Product name |
Arduino Pro 4G Module EMEA |
| Region |
EMEA/Southeast Asia |
| Modem |
Quectel EC200A-EU |
| Chip |
ASR1803 (Marvell) |
| LTE |
LTE CAT4 4G with 2G/3G fallback |
| GNSS |
Not applicable |
| Interfaces |
|
Note! Does not include an antenna. Requires Arduino H7, H8 and C33 to also use an Arduino Mid Carrier or Max Carrier motherboard.
