• each pixel is an individually addressable RGB LED
• operating voltage: 5V (min. 2A power supply)
• panel size: 192 x 96 mm
• LEDs arranged approx. 6 mm apart in a 32x16 matrix
• compatible with the Adafruit RGBMatrixPanel Library
• the add-on board includes a DS1307 RTC real-time clock IC, battery CR1220 (not included), I2C connection to A4 and A5 pins
• the panel connects to the add-on board with an IDC ribbon cable (HUB75-D), chaining possible

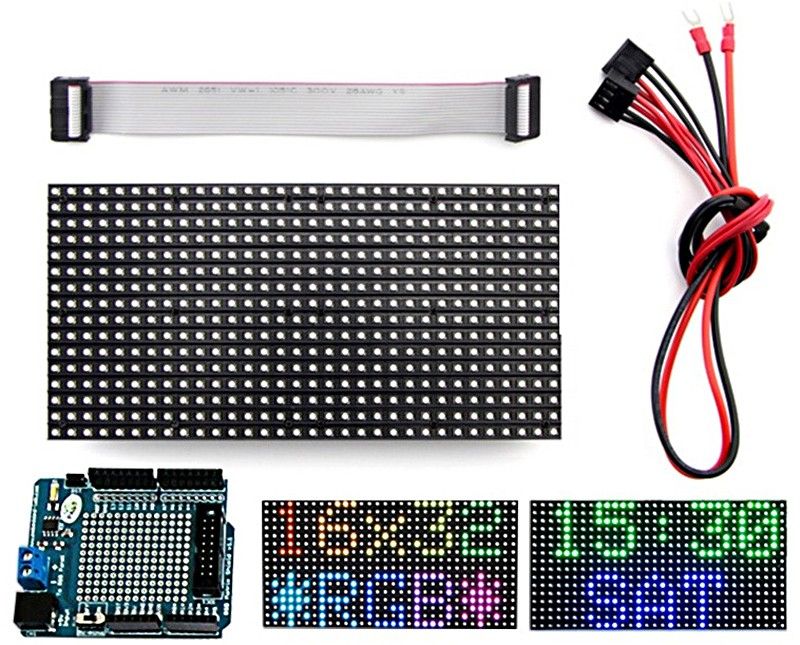

Package contents

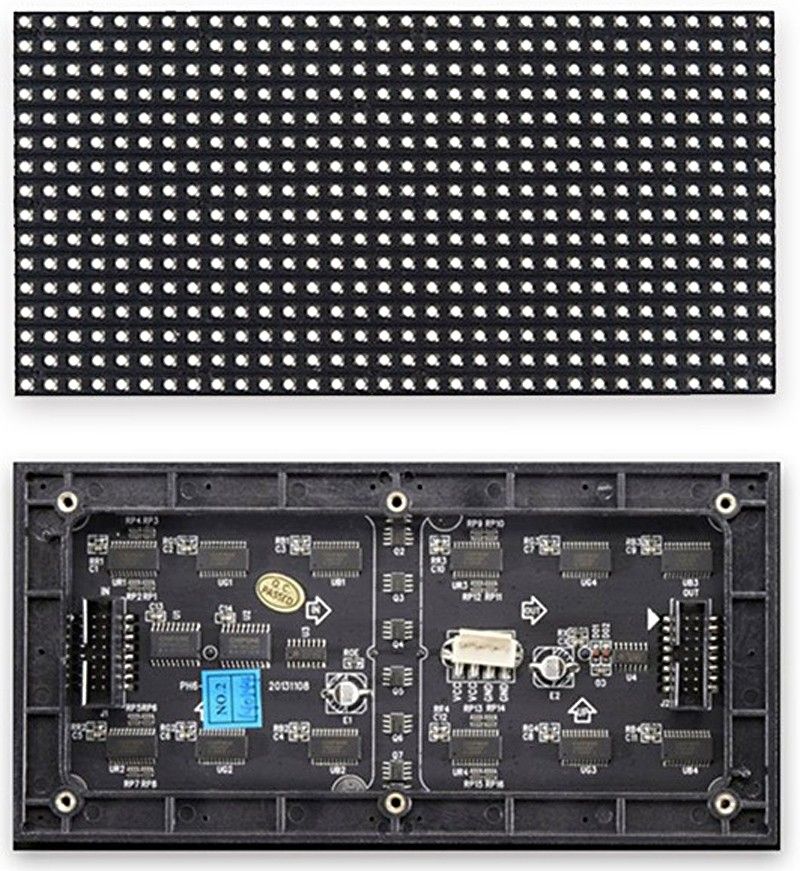

• 16x32 RGB LED panel

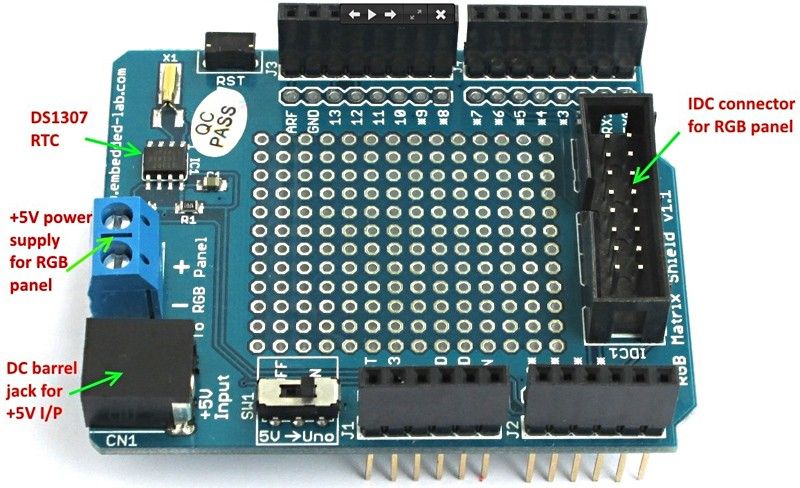

• RGB Arduino Shield add-on board (Arduino Uno or compatible)
• IDC ribbon cable between the RGB Arduino Shield and the LED panel
• power cable for the panel

Note! Requires a separate 5V 2A power supply (see below). Connector is a standard 2.1mm x 5.5mm DC jack.

Note! Remove the fork terminals from the panel's power cable and connect them to the shield's terminal block.

Useful links

Documentation and hookup instructions: http://embedded-lab.com/blog/hookup-guide-for-16x32-rgb-led-panel/
