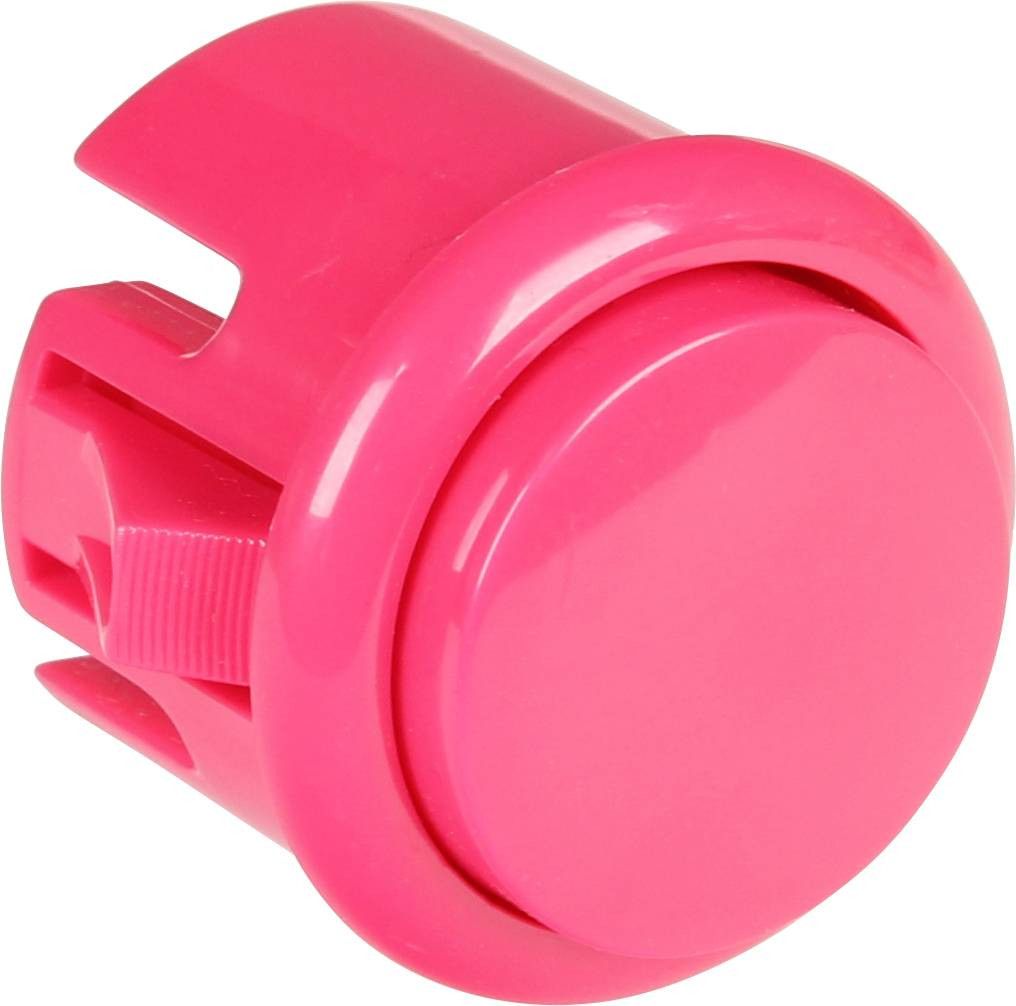

ARCADE MICROSWITCH 33X30 magenta

In stock 7 pcs

SKU#: KYT-ARC3330-MAG

ARCADE MICROSWITCH 33X30 magenta

ARCADE MICROSWITCH 33X30 magenta

ARCADE MICROSWITCH 33X30 magenta

In stock 7 pcs

SKU#: KYT-ARC3330-MAG

Joy-IT Button-Magenta-Mini - magenta microswitch for arcade game use

4,74 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

micro switch (NO) activated by light press
max. 12VDC for switching
installed in a cutout by pressing in

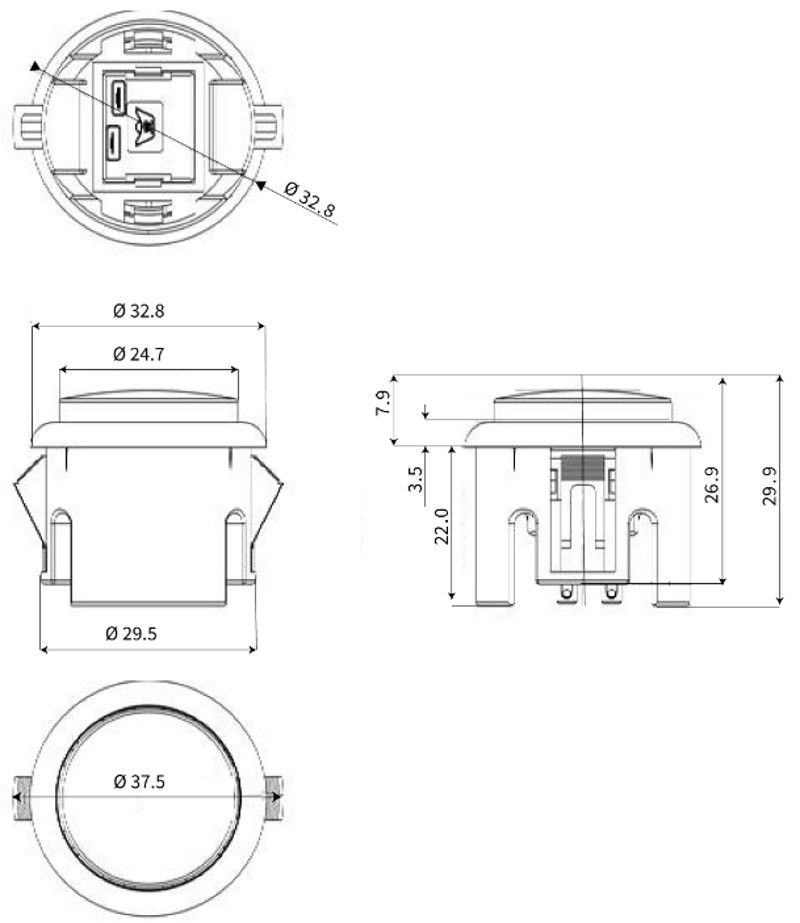

outer flange: 32,8mm
button part: 24,7mm
housing cutout: Ø29,5 - plate 3mm
required space in housing: max. 30 x 22 mm
overall height: 30mm
supply includes button part and micro switch

Product Information

Availability In stock
Manufacturer Joy-IT
EAN 4250236816005
Product path Home Do It Yourself Retro Gaming Arcade Switches ARCADE MICROSWITCH 33X30 magenta
SKU KYT-ARC3330-MAG
Attributes
- Color magenta
- Voltage class 12V
- Manufacturer's model Button-Magenta-Mini
- Click for more details https://joy-it.net/en/products/Button-XXX-Mini
