ARCADE MICROSWITCH 27X25 magenta

In stock under 5 pcs

SKU#: KYT-ARC2725-MAG

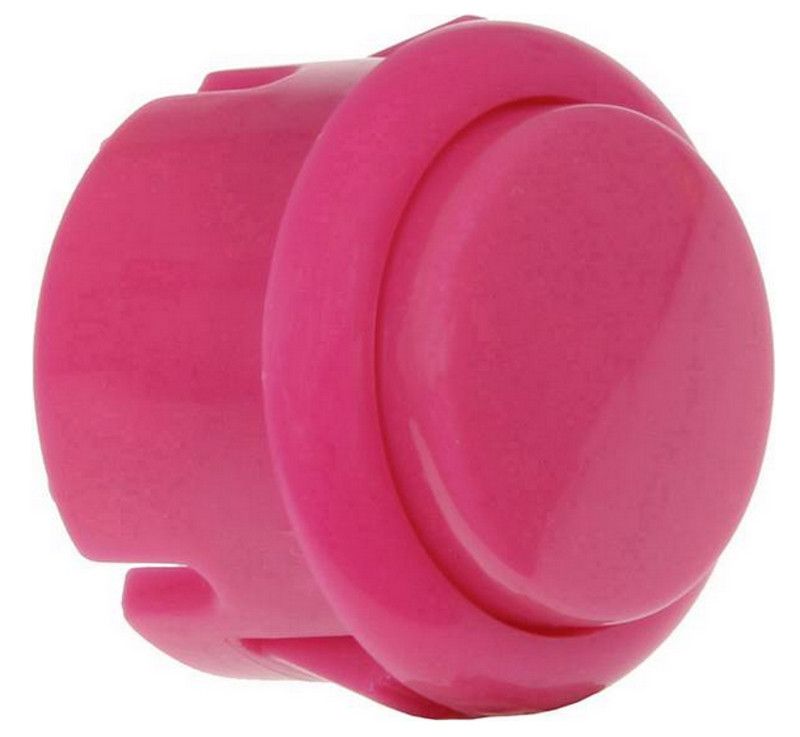

ARCADE MICROSWITCH 27X25 magenta

ARCADE MICROSWITCH 27X25 magenta

ARCADE MICROSWITCH 27X25 magenta

In stock under 5 pcs

SKU#: KYT-ARC2725-MAG

Joy-IT Button-Magenta-Micro - magenta micro switch for arcade gaming

3,28 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

micro switch (NO) that actuates on light press
max. for 12VDC switching
installed into a cutout by pressing

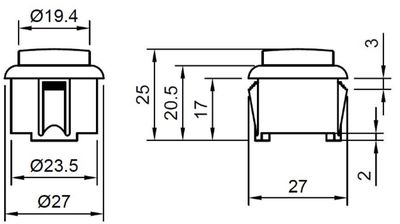

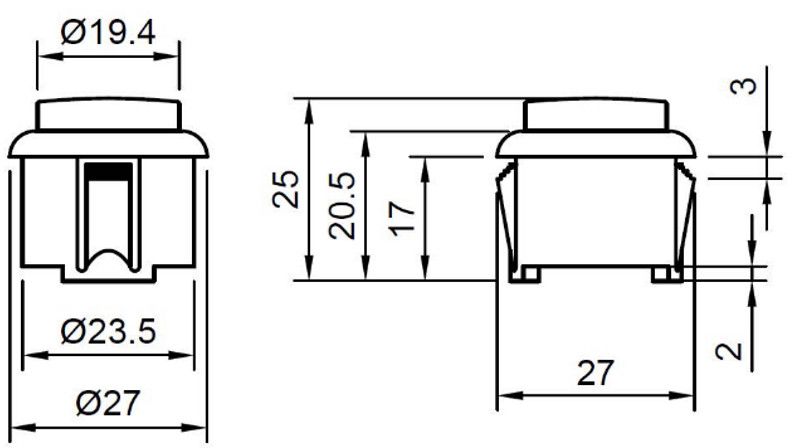

outer flange: 27mm
button part: 19,4mm
enclosure cutout: Ø23,5 -levy 3mm
required space in enclosure: max. 27 x 17 mm
overall height: 25mm
delivery includes button part and micro switch

Product Information

Availability In stock
Manufacturer Joy-IT
EAN 4250236818405
Product path Home Do It Yourself Retro Gaming Arcade Switches ARCADE MICROSWITCH 27X25 magenta
SKU KYT-ARC2725-MAG
Attributes
- Color magenta
- Voltage class 12V
- Manufacturer's model Button-Magenta-Micro
- Click for more details https://joy-it.net/en/products/Button-XXX-Micro
