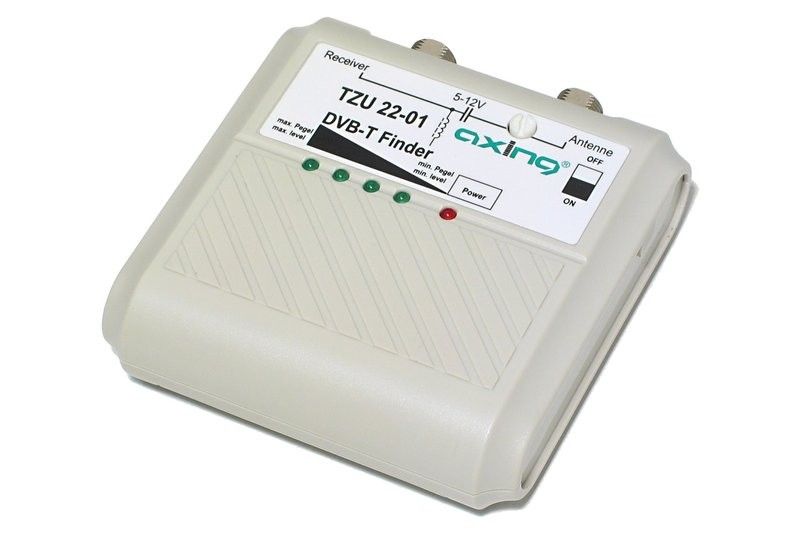

Handy-sized antenna signal level meter suitable for analog and digital signals. No need to drag the set-top box with the TV onto the roof anymore when aligning the antenna.

• especially for DVB-T use
• frequency range: 47-862MHz
• stepless input level control: 20dB
• on/off switch for the antenna on the side

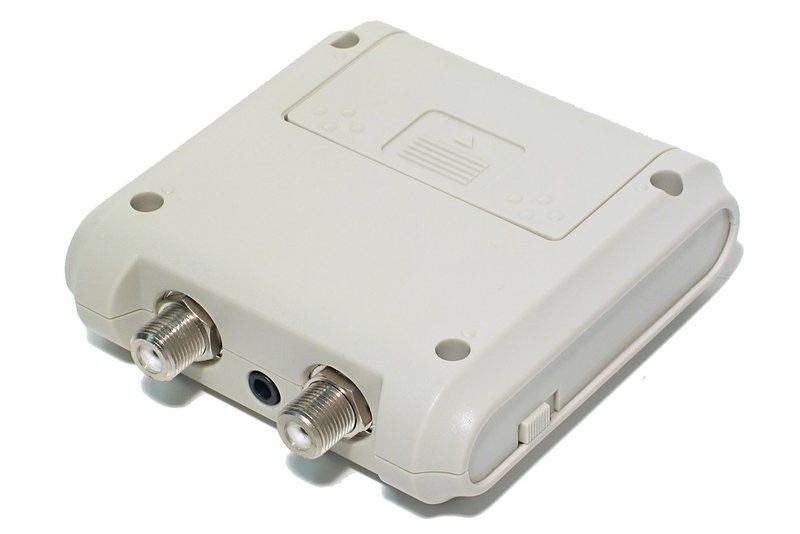

• screwable F-connectors
• power requirements
  • 9V BATTERY (not included)
  • external power supply 5..12V 25mA Ø3,5mm mono plug (not included)
  • power from the set-top box or antenna-cable power supply 5V 25mA

Note! Customer feedback and tests by Partcon Pajan have revealed an issue indicating insufficient sensitivity of the meter. In some cases, when the antenna signal is particularly weak, this meter shows nothing (none of the LEDs light). Some digital channels may still be visible (depending on the receiver and the case). In stronger fields the meter, however, works flawlessly. And remember that the propagation of the broadcast signal in the air depends on weather and season.
