AMPLIFIER 12W Plug&Play

Name: AMPLIFIER 12W Plug&Play
Brand: Kemo Electronic
SKU: KEMO-M032S
Price: 32.20 EUR
Availability: InStock

out of stock

SKU#: KEMO-M032S

out of stock

SKU#: KEMO-M032S

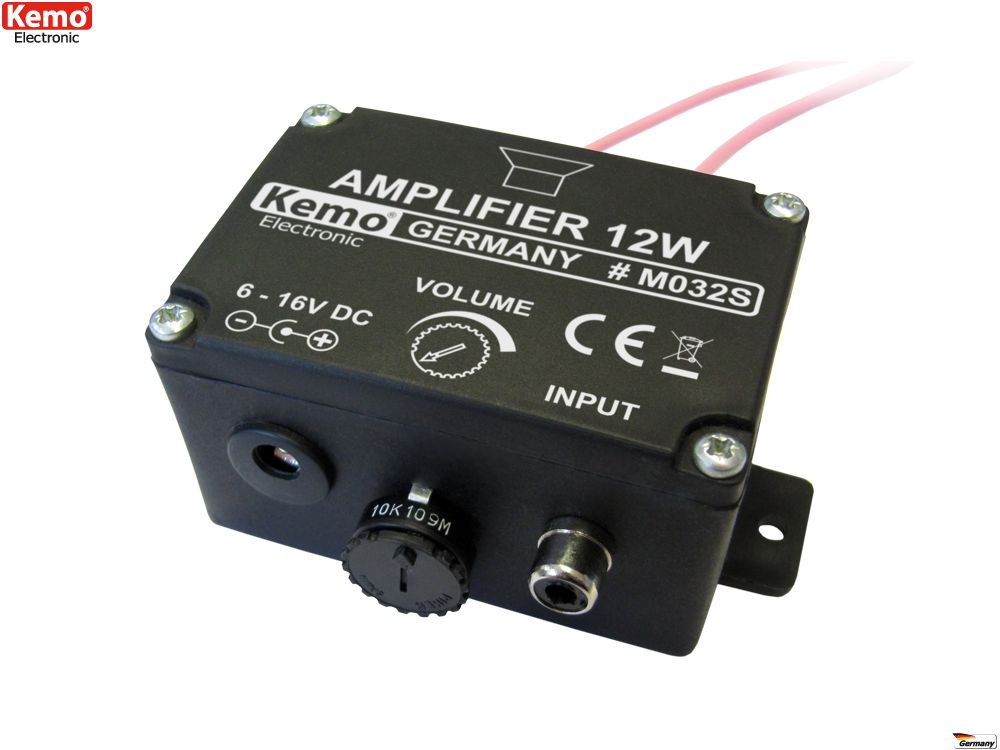

Kemo M032S - 12W general-purpose mono audio amplifier.

32,20 €

Temporarily out of stock

Add a comment about the product to my order

Product Description

Operating voltage	8 - 16 V/DC
Current consumption	max. 800 mA
Input voltage levels	50 - 500 mV
Input sensitivity	<80 mV
Suitable speaker	4 - 16 Ohm
Music power	max. 12 W @16 V/DC @ 4 Ohm speaker
Frequency response	approx. 40 - 20.000 Hz
Power connector	2,1 mm DC plug, positive in the center

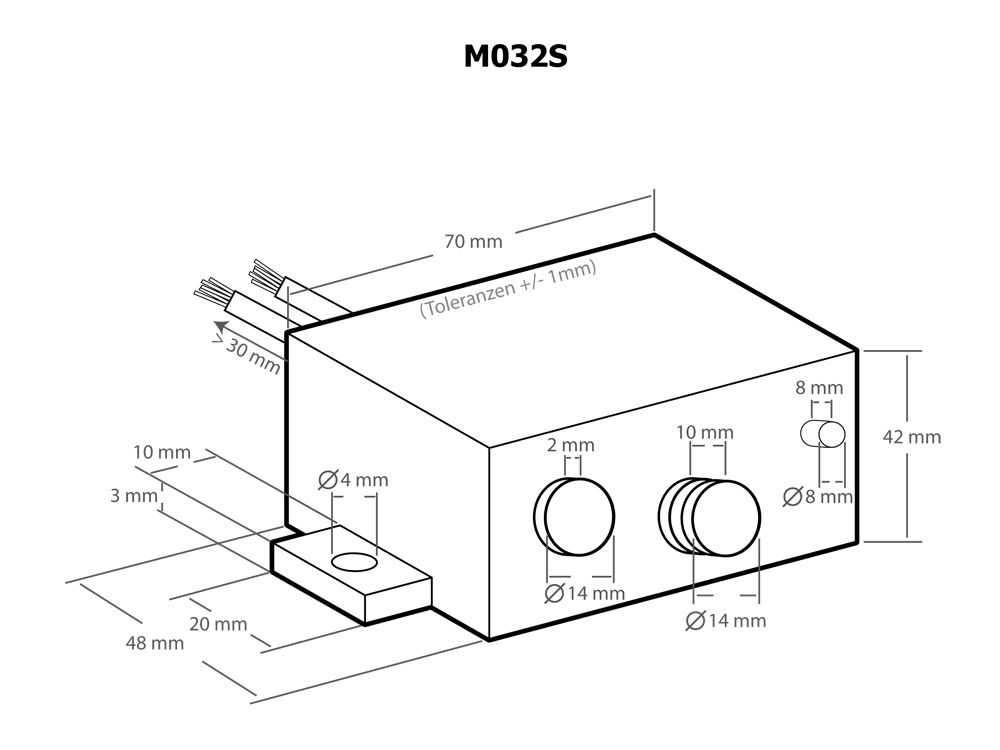

Dimensions	approx. 73 x 60 x 43 mm (without mounting ears)

Availability Temporarily out of stock
Manufacturer Kemo Electronic
EAN 4024028030302
Product path Home Do It Yourself Building Kits Kemo ready-made modules AMPLIFIER 12W Plug&Play
SKU KEMO-M032S
Attributes
- Manufacturer's model M032S
- Click for more details https://www.kemo-electronic.de/en/Hobby-School/M032S-Universal-Amplifier-12-W-Plug-Play.php
- Dimensions 73 x 60 x 43 mm
