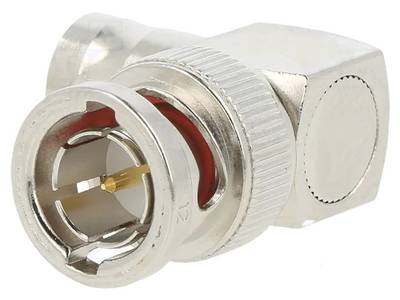

Amphenol RF 031-9-75RFX – BNC 75 Ω right-angle adapter, male–female

The Amphenol RF 031-9-75RFX is a 75 ohm BNC right-angle adapter featuring a BNC male connector and a BNC female connector. The 90-degree design is particularly suitable for applications where the cable exit direction needs to be changed or where there is limited space behind the connector.

Technical specifications

• Manufacturer: Amphenol RF
• Manufacturer part number: 031-9-75RFX
• Connector type: BNC – BNC
• Connections: BNC male – BNC female
• Impedance: 75 Ω
• Construction: 90° right-angle adapter
• Maximum frequency: 4 GHz
• Body material: brass
• Body plating: nickel
• Center contact plating: gold
• Operating temperature: -65...+165 °C

Applications

Thanks to the 75 Ω impedance, the adapter is suitable for 75 ohm coaxial video and RF systems. The right-angle design facilitates cabling in tight installation spaces.
