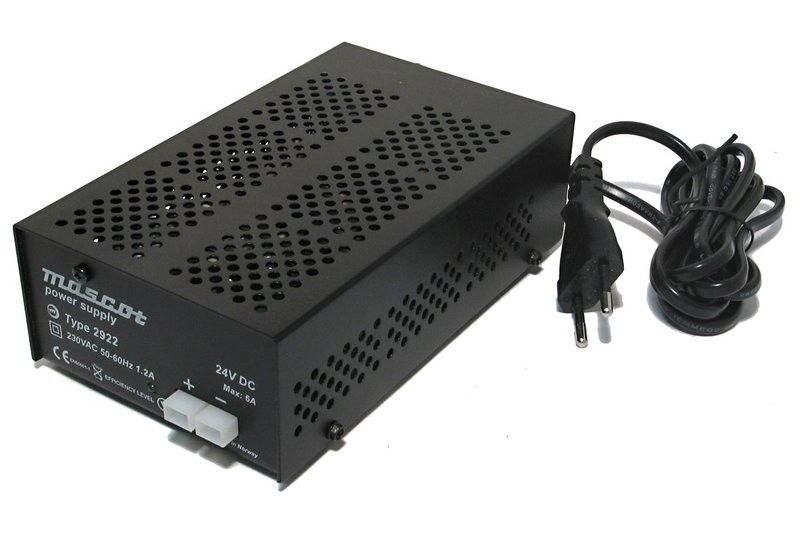

ADJUSTABLE SMPS 145W 24VDC 6A (Medical+ErP)

Temporarily out of stock

SKU#: MAS-2922-24V

ADJUSTABLE SMPS 145W 24VDC 6A (Medical+ErP)

ADJUSTABLE SMPS 145W 24VDC 6A (Medical+ErP)

Temporarily out of stock

SKU#: MAS-2922-24V

207,72 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

input voltage: 230VAC 50/60Hz (198-264VAC)
output voltage: 24VDC 6,1A (22,0-28,0VDC)
output voltage is adjusted with an internal trim potentiometer
output power: max. 145W
short-circuit and Transzorb overvoltage protection
switching frequency: 65kHz
efficiency: 85%
operating temperature: -20...+40°C
isolation voltage 4000VAC
front panel 6,3 mm blade connectors (includes two blue crimp connectors)
mains cable length: 1,8 m
Medical Approved classification (EN 60601-1-2)
High efficiency and low standby power (ErP Directive) classification

Product Information

Availability Temporarily out of stock
Manufacturer Mascot
EAN 7057070070665
Product path Home power-supplies Chopper Power Supplies Voltage Adjustable Switching Power Supplies ADJUSTABLE SMPS 145W 24VDC 6A (Medical+ErP)
SKU MAS-2922-24V
Attributes
- Color musta
- Manufacturer's model 2922 2400 00
- Click for more details http://www.mascot.no/admin/common/getimg.asp?FileID=1059
- Dimensions 168 x 100 x 52 mm
