Kemo M015N - adjustable DC/DC voltage reducer. Input voltage 6-28VDC, output voltage 3-15VDC, current max. 1,5A.

20,11 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Features

The output voltage is adjusted with a trimmer.
The input voltage must be higher than the output.
A status LED indicates the input voltage and the condition of the adjustment trimmer.
Short-circuit protection.
Connection with wires.

Technical specifications

Input voltage	6 - 28 V/DC
Output voltage, adjustable	3 - 15 V/DC (electronically stabilized)
Note	The input voltage must be at least 3V higher than the set output voltage (step-down).
Max. current	1.5 A
Max. power dissipation	approx. 3 W without a heatsink, approx. 10 W with a heatsink (not included)

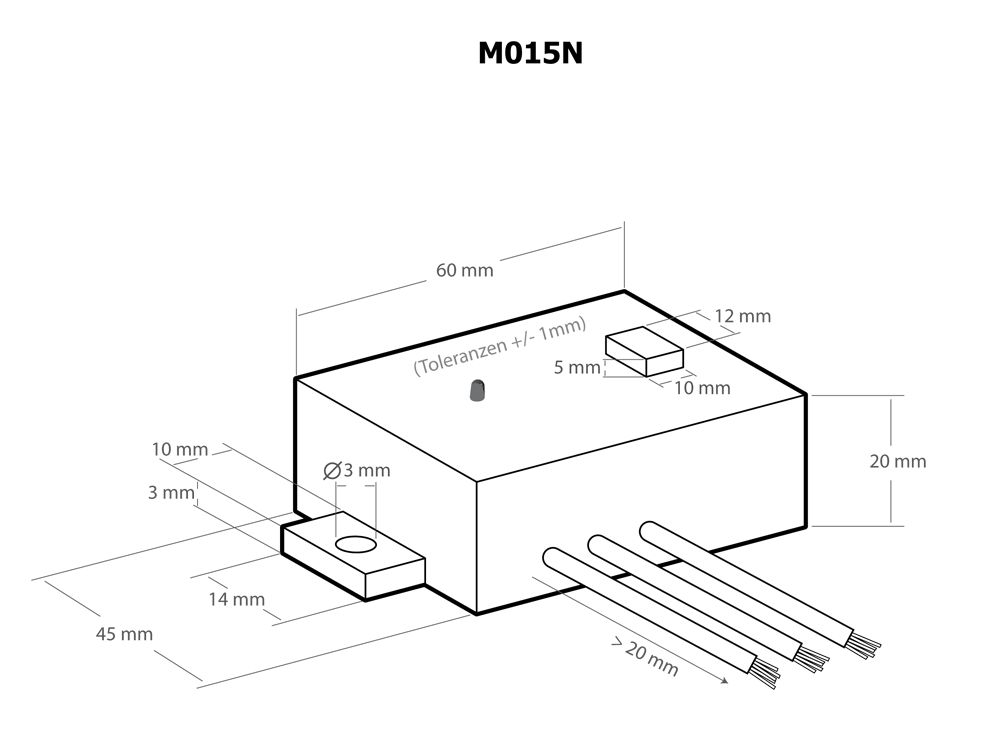

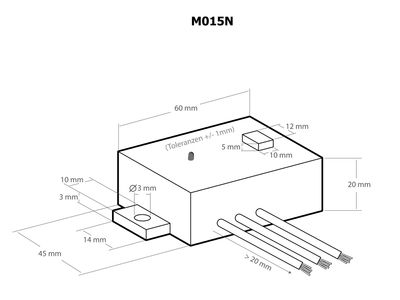

Dimensions	approx. 60 x 45 x 20 mm (without mounting ears)

Installation instructions

Always use a fuse Kemo M015N between the device and the battery; do not connect directly to the battery terminals. The recommended value is 1.5A.

The greater the voltage difference between input and output, the more the device heats up. If the device becomes very hot, mount it to a heatsink. Use thermal paste between them.

Product Information

Availability In stock
Manufacturer Kemo Electronic
EAN 4024028030159
Product path Home Do It Yourself Building Kits Kemo ready-made modules ADJUSTABLE DC/DC CONVERTER 3-15Vout 1.5A
SKU KEMO-M015N
Attributes
- Manufacturer's model M015N
- Click for more details https://www.kemo-electronic.de/en/Car/Modules/M015N-DC-DC-Converter-adjustable.php
- Dimensions 60 x 45 x 20 mm
