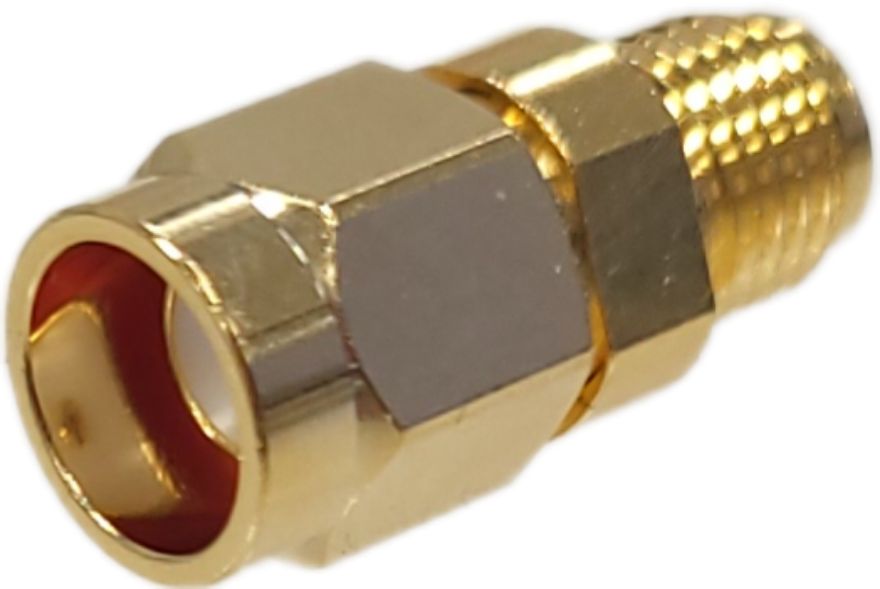

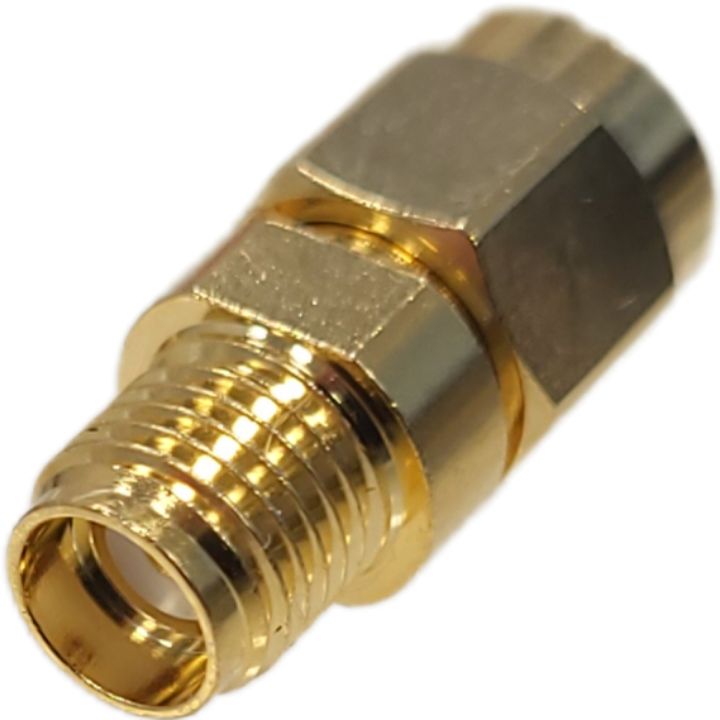

SMA(F) S/T connector – Quick SMA(M) S/T R/P plug adapter is designed for precise RF connections in demanding environments. Manufactured by EnterTec Technology Inc., the adapter ensures reliable performance up to 10 GHz.

Features:

• Connector type: SMA female connector (S/T connector) – Quick SMA male connector (S/T reversed polarity)
• Frequency range: Up to 10 GHz
• Materials: Brass body and shell with gold plating, beryllium copper contacts with 20 µ" gold plating, PTFE insulator, silicone O-ring
• Thread: 1/4-36 UNS-2A
• Dimensions: HEX 8,0 mm, length 18,10 mm
• RoHS compliant
• Tight tolerances for critical dimensions and angular alignment
