Adafruit Sensirion SHT45 temperature- and humidity sensor STEMMA QT I2C

Name: Adafruit Sensirion SHT45 temperature- and humidity sensor STEMMA QT I2C
Brand: Adafruit
SKU: ADA5665
Price: 27.15 EUR
Availability: InStock

In stock under 5 pcs

SKU#: ADA5665

Adafruit Sensirion SHT45 temperature- and humidity sensor STEMMA QT I2C

Adafruit Sensirion SHT45 temperature- and humidity sensor STEMMA QT I2C

In stock under 5 pcs

SKU#: ADA5665

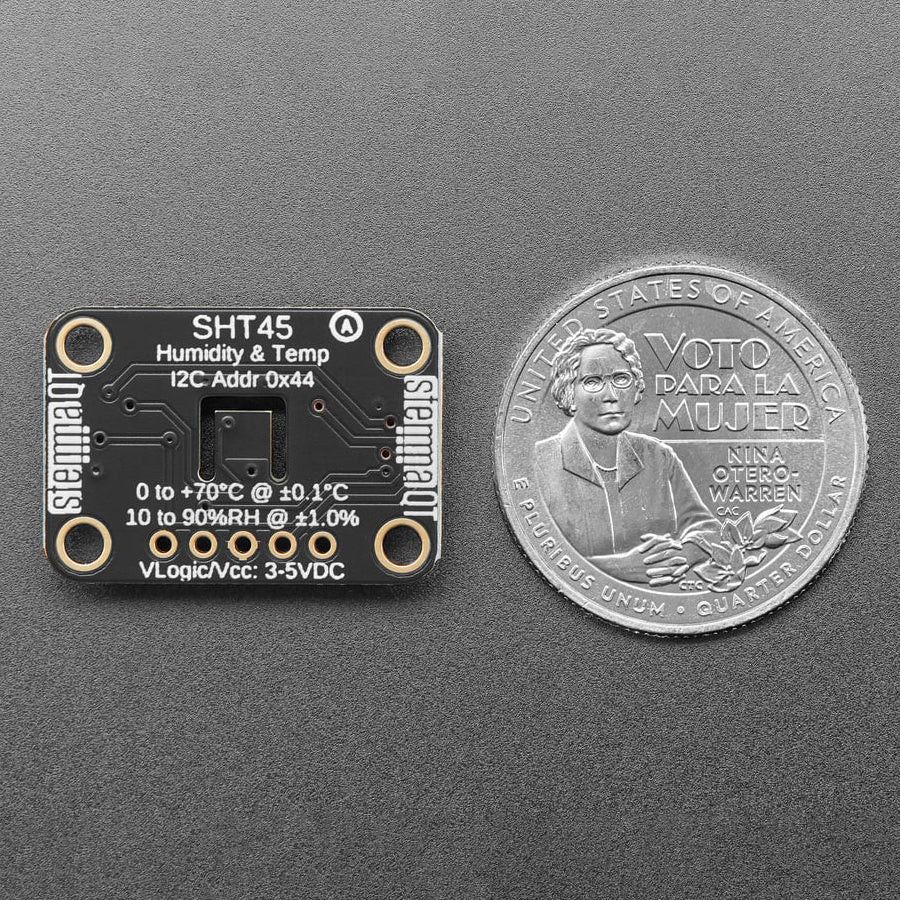

Adafruit Sensirion SHT45 - temperature and humidity sensor for precise measurement. Offers ±1.0% RH and ±0.1°C typical accuracy, operates in the 0-75°C and 25-75% RH ranges. A true I2C interface enables easy data transfer over two wires. Includes STEMMA QT I2C connectors.

27,15 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Adafruit Sensirion SHT45 - temperature and humidity sensor for precise measurements. The sensor offers ±1.0% RH and ±0.1°C typical accuracy in the 0-75°C and 25-75% RH ranges. A true I2C interface enables easy data transfer with two wires.

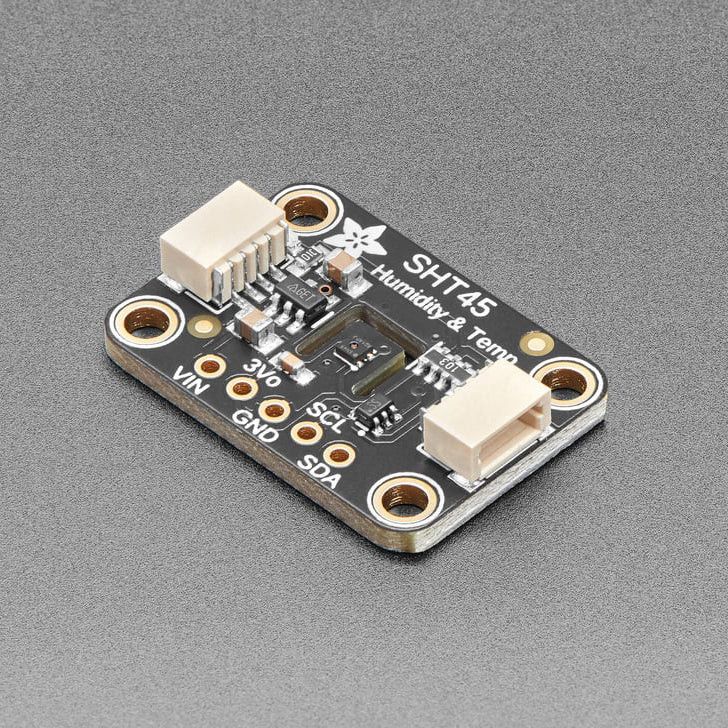

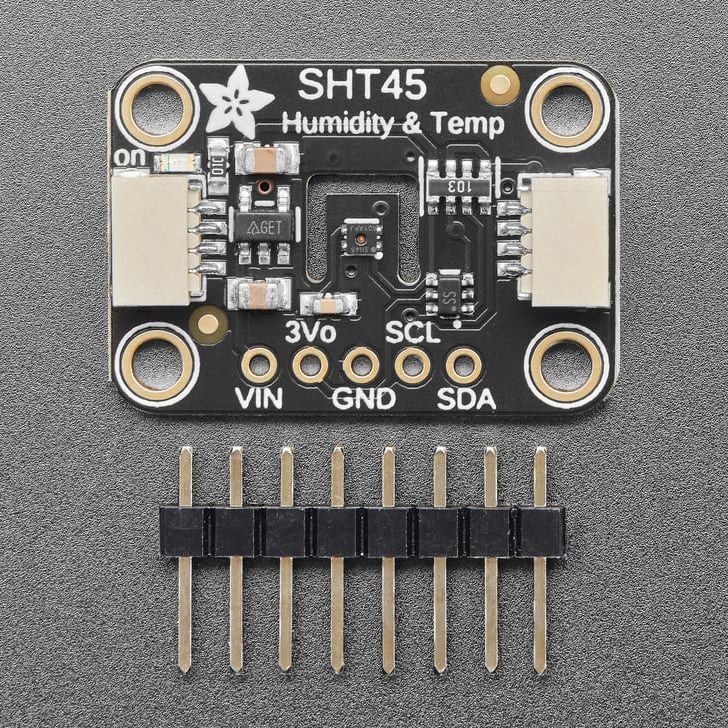

The module is 3-5V compatible and includes pull-up resistors, capacitors and STEMMA QT connectors for the I2C bus. If needed, the connectors can be soldered for breadboard use.

Technical specifications

Accuracy	±1.0 % RH, ±0.1 °C
Voltage/Logic	3.3V - 5V
Average current / Sleep current	0.4 µA / 80 nA (without regulator)
I2C	FM+, CRC checksum, default address 0x44
Operating range	0-100 % RH, -40-125 °C, also operates in condensing conditions
Additional features	Power heater, NIST-traceable, JEDEC JESD47, ISO 17025 : 2017 calibration certificate
Dimensions / Weight	25.5mm x 17.7mm x 4.8mm / 1.7g

Product Information

Availability In stock
Manufacturer Adafruit
Product path Home Development Cards Arduino Arduino expansion boards (shields) Adafruit Sensirion SHT45 temperature- and humidity sensor STEMMA QT I2C
SKU ADA5665
Attributes
- Manufacturer's model 5665
- Click for more details https://www.adafruit.com/product/5665
