The sensor can read both the thermocouple (hot) and the on-board sensor (cold) temperature. Alarms can also be set for too high or too low temperatures. Operation is simple via the I2C bus.

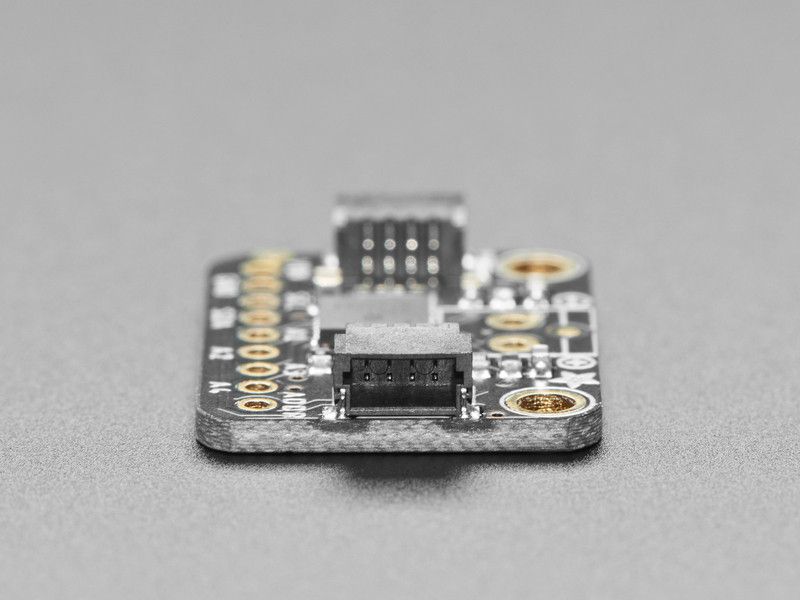

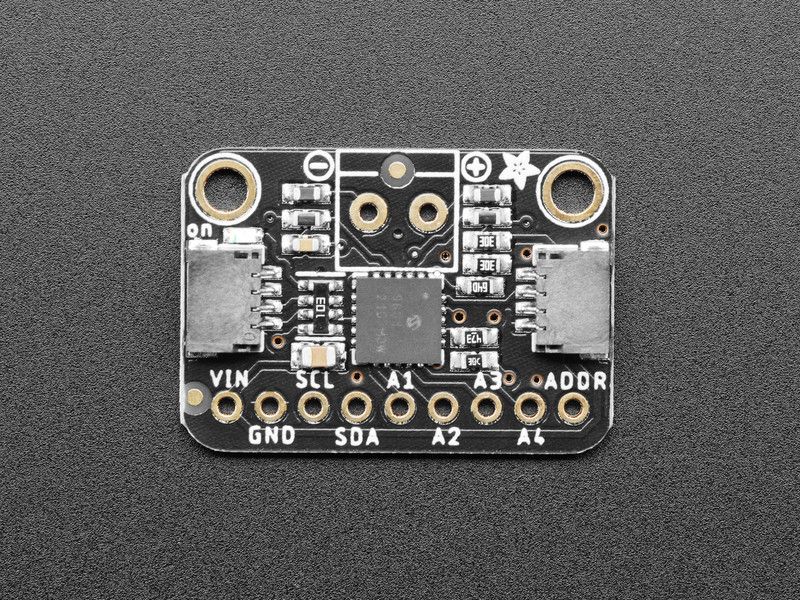

The breakout board includes the IC itself, a 3.3 V regulator and level-shifting circuits. It works with both 3.3 V and 5 V logic. A 2-pin connector for the thermocouple and a pin header for breadboard use are included. The board has STEMMA QT connectors that are compatible with SparkFun Qwiic connectors, allowing connection without soldering. QT cable is not included.

Ideal, for example, for use with a 1 m K-type thermocouple.

Features:

• Supports thermocouple types: K, J, T, N, S, E, B, R
• Measurement ranges according to the datasheet:
  • K: -200 °C … +1372 °C
  • J: -150 °C … +1200 °C
  • T: -200 °C … +400 °C
  • N: -150 °C … +1300 °C
  • E: -200 °C … +1000 °C
  • S: +250 °C … +1664 °C
  • B: +1000 °C … +1800 °C
  • R: +250 °C … +1664 °C
• Resolution: ±0.0625 °C (note: ADC resolution, not accuracy)
• Typical accuracy of the MCP9601 IC: ±2.0 °C, maximum ±4.0 °C (does not include the thermocouples' own inaccuracy, e.g. K-type ±2…±6 °C)
• On-board cold-junction temperature measurement
• Operating voltage and logic: 3.3–5 V
• I2C interface, STEMMA QT / Qwiic-compatible connectors

Package includes:

• 1 × MCP9601 Thermocouple Breakout (assembled and tested)
• 2-pin connector for thermocouple
• Pin header
