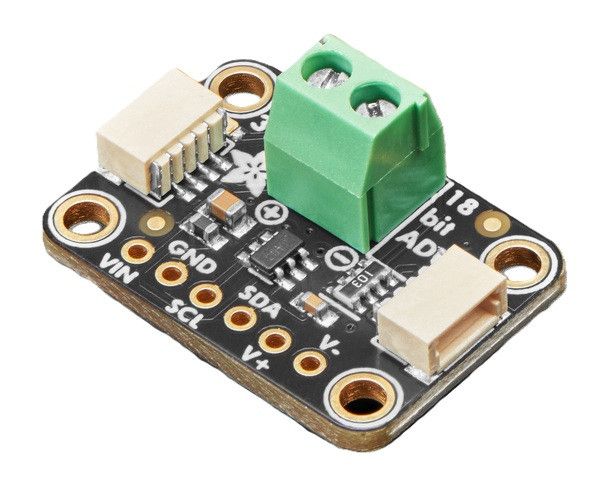

Adafruit MCP3421 18-BIT ADC ADD-ON BOARD STEMMA QT I2C

Name: Adafruit MCP3421 18-BIT ADC ADD-ON BOARD STEMMA QT I2C
Brand: Adafruit
SKU: ADA5870
Price: 10.75 EUR
Availability: InStock

In stock 4 pcs

SKU#: ADA5870

Adafruit MCP3421 18-BIT ADC ADD-ON BOARD STEMMA QT I2C

In stock 4 pcs

SKU#: ADA5870

Adafruit MCP3421 - 18-bit ADC breakout with I2C interface. Supports 240 SPS and adjustable gain, differential inputs and a built-in precise low-drift reference voltage. STEMMA QT connectors make it easy to connect without soldering; includes a small header for breadboard use.

10,75 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

Adafruit MCP3421 18-bit ADC breakout offers an easy way to measure analog signals via I2C. Supports 240 SPS and adjustable gain, differential inputs and a built-in precision reference voltage.

The breakout board is in STEMMA QT form factor, so it can be connected to development boards without soldering. A small 0.1" header for breadboard or perfboard use is included, as well as four mounting holes to secure the board.

Specifications

Resolution / Sampling rate	12-18 bit, 3.75 - 240 SPS
Inputs	Differential, 0-2.048V
Gain	Adjustable (programmable gain)
I2C	FM+, fixed address, supports up to 3.4 MHz
STEMMA QT	Two connectors, SparkFun Qwiic compatible
Additional features	One-shot / continuous mode, Arduino library, four mounting holes
Header	0.1" included for breadboard use

Links:

Product page

Adafruit_MCP3421 Library
