LSM6DSO32 offers advanced Motion Sensor Fusion functionality, low power consumption and very high accuracy, enabling even more versatile applications. Its I2C and SPI interfaces make integration easy, and the sensor operates directly from a 3.3–5.5 V supply. The module is designed to be STEMMA QT-compatible, allowing an easy plug-and-play connection with SparkFun Qwiic cables without soldering. The module also features an intelligent motion notification that enables wake-on-motion, saving power during long operating periods.

Technical specifications

• Operating voltage: 3.3–5.5 V
• I2C and SPI interfaces
• Accelerometer: ±2/±4/±8/±16 g
• Gyroscope: ±125/±250/±500/±1000/±2000 dps
• Size: 3 × 3 × 1 mm (sensor)
• STEMMA QT-compatible plug-and-play connector

Package includes

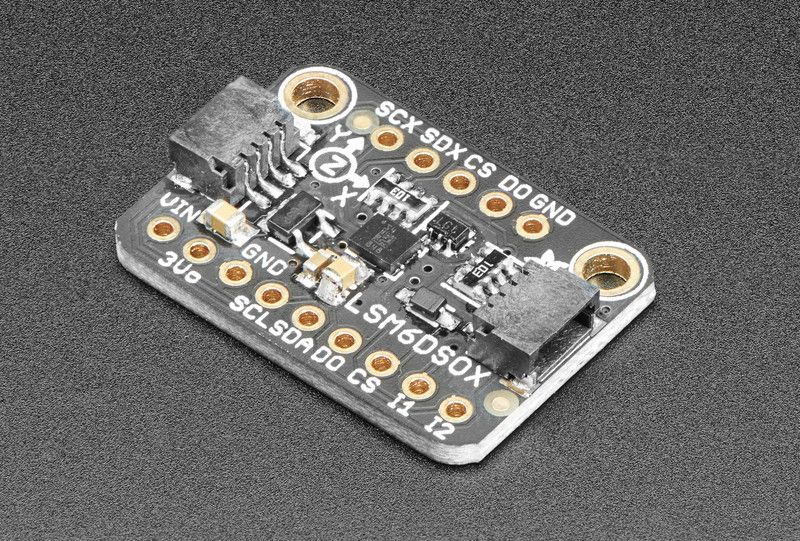

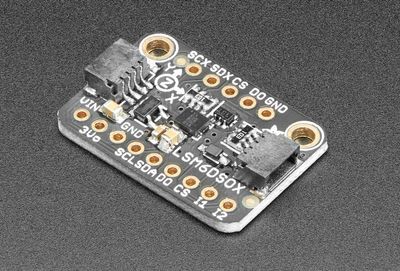

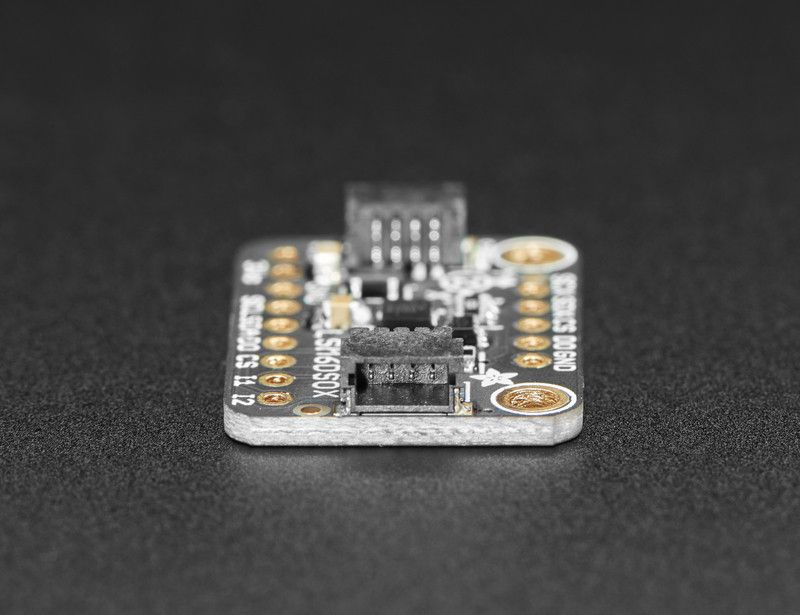

• 1 × Adafruit LSM6DSO32 6 DoF IMU Breakout
