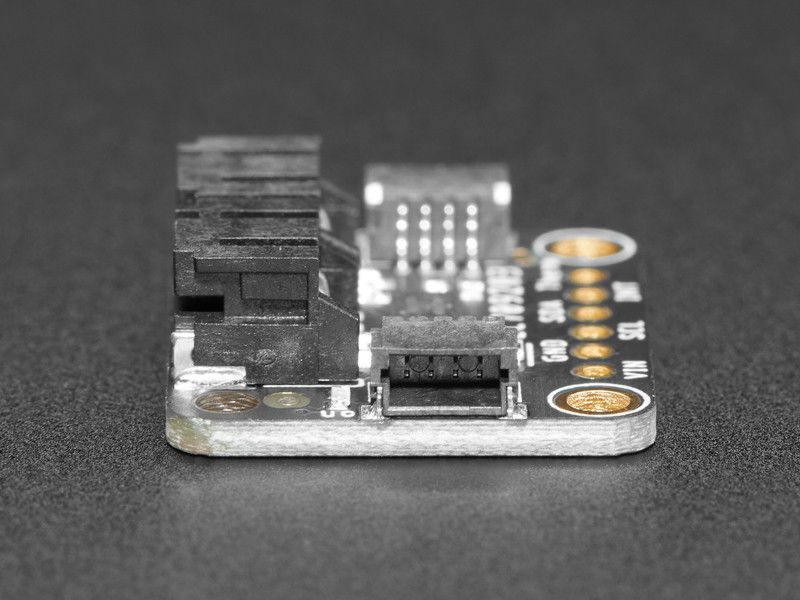

The LC709203F includes an advanced charge monitoring system that provides precise information about the battery charge as a percentage and the battery voltage. The sensor communicates directly over the I2C bus either via pin header or STEMMA QT connector, making it easy to integrate into microcontroller-based projects. A wide operating voltage range (2.7–4.2 V) makes it compatible with most LiPo and LiIon batteries. This module is specifically designed for battery-powered applications such as portable devices, IoT projects, and monitoring battery-powered equipment.

Technical specifications

• Operating voltage: 2.7–4.2 V
• I2C interface
• Battery voltage and state of charge (SOC)
• Accuracy: ±1 % SOC
• Size: 20 mm × 10 mm

Package includes

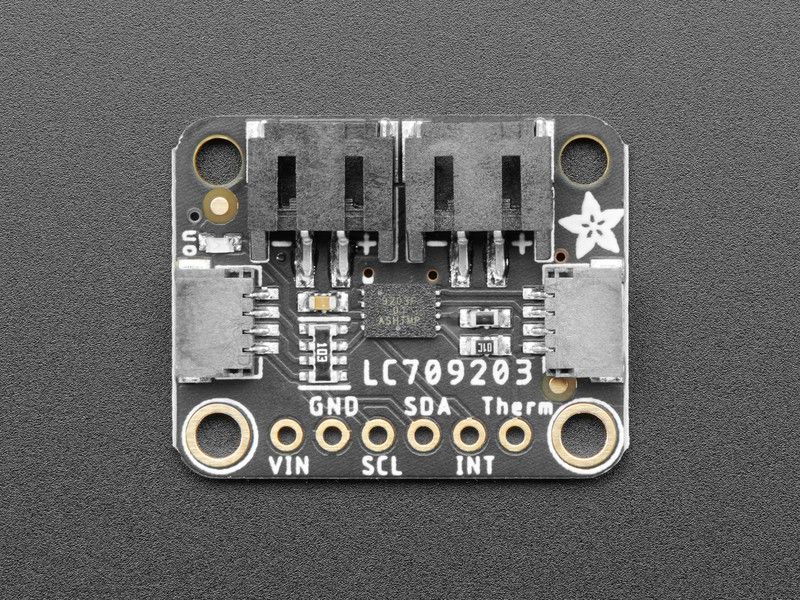

• 1 × Adafruit LC709203F Fuel Gauge and Battery Monitor
