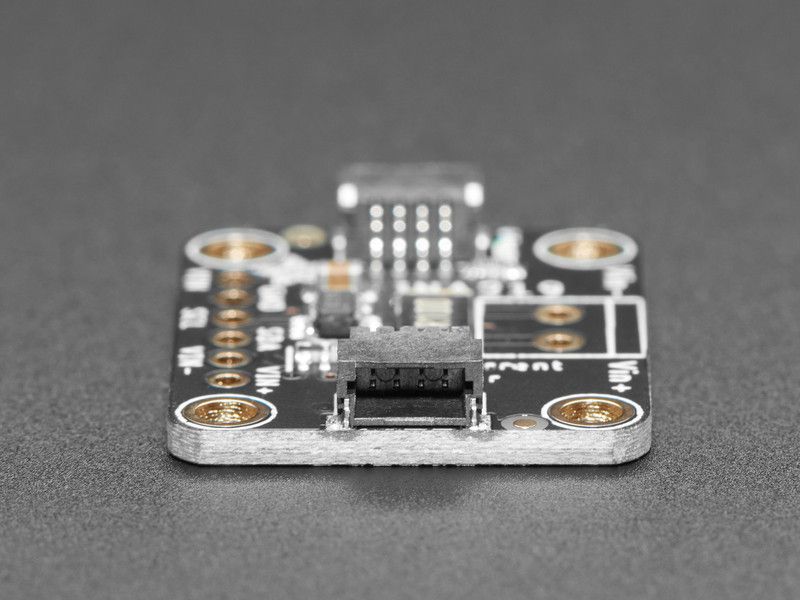

The Adafruit INA219 module provides a complete solution for measuring current, voltage and power. It includes a 12-bit ADC that allows a current resolution of about 0.8 mA. The board has an internal 0.1 Ω shunt resistor and level shifting, so it can be used directly with 3.3 V and 5 V logic. Thanks to STEMMA QT connectors, the sensor can also be connected without soldering. An excellent choice for monitoring the current consumption of batteries, motors or other loads.

Technical specifications

• Current measurement range: ±3.2 A (internal 0.1 Ω shunt)
• Voltage measurement range: 0–26 V
• Resolution: 12-bit ADC, approx. 0.8 mA step
• Calculated values: current (A), voltage (V), power (W)
• I2C interface, configurable address
• Operating voltage: 3.0–5.5 V, compatible with 3.3 V and 5 V logic
• STEMMA QT / Qwiic connectors make wiring easier
• Dimensions: 26 mm × 23 mm × 4 mm

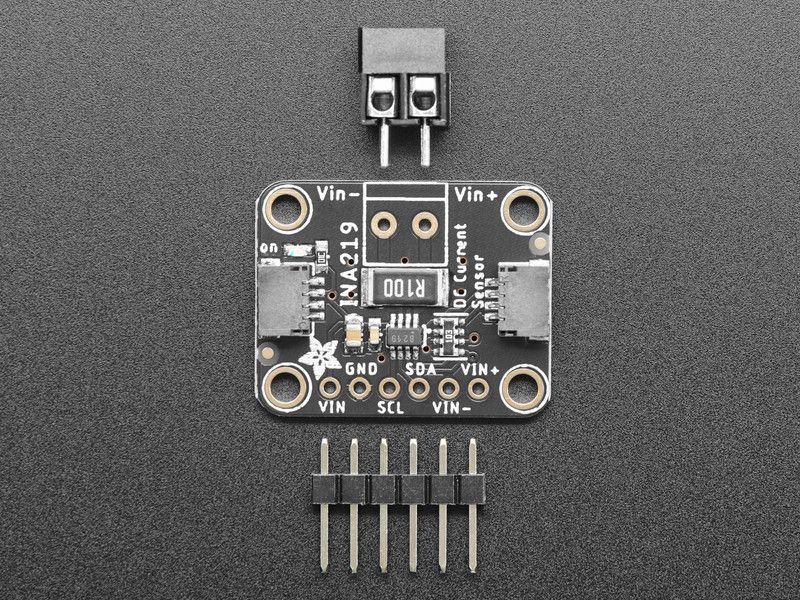

Package contents

• 1 × Adafruit INA219 Current Sensor Breakout (assembled and tested)
• Pin header
