ADAFRUIT I2C STEMMA QT ROTARY EN

In stock 4 pcs

SKU#: ADA5880

ADAFRUIT I2C STEMMA QT ROTARY EN

ADAFRUIT I2C STEMMA QT ROTARY EN

ADAFRUIT I2C STEMMA QT ROTARY EN

In stock 4 pcs

SKU#: ADA5880

14,90 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

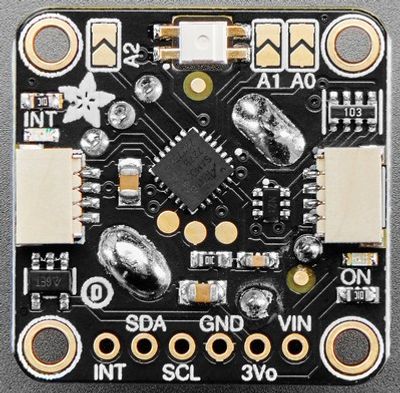

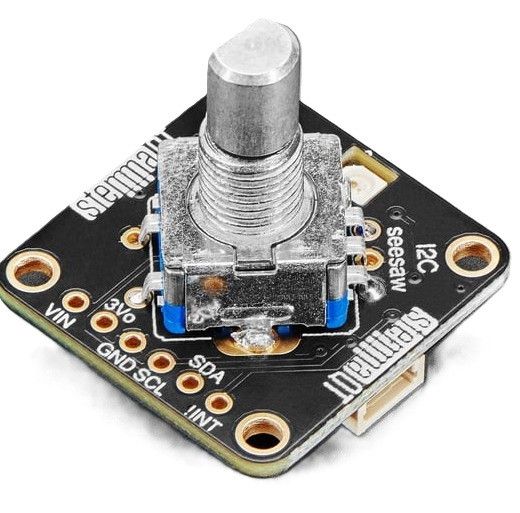

Pre-soldered rotary encoder with push-button
STEMMA QT / Qwiic-compatible plug-and-play I²C connectivity
Seesaw firmware handles: NeoPixel RGB LED for visual feedback (I²C-controlled)
- Pulse counting
- Button press detection
- Interrupt generation
INT pin: Configurable to pulse low on rotation or on button press
I²C addressing: 0x36–0x3D (3 address jumpers)
Power: 3–5 V DC
Logic level: 3 V or 5 V I²C
Form factor: 1" × 1", encoder mounted at a 45° angle
Breadboard-compatible: 0,1" breakout pads

Product Information

Availability In stock
Manufacturer Adafruit
Product path Home Development Cards Arduino Arduino Playground ADAFRUIT I2C STEMMA QT ROTARY EN
SKU ADA5880
