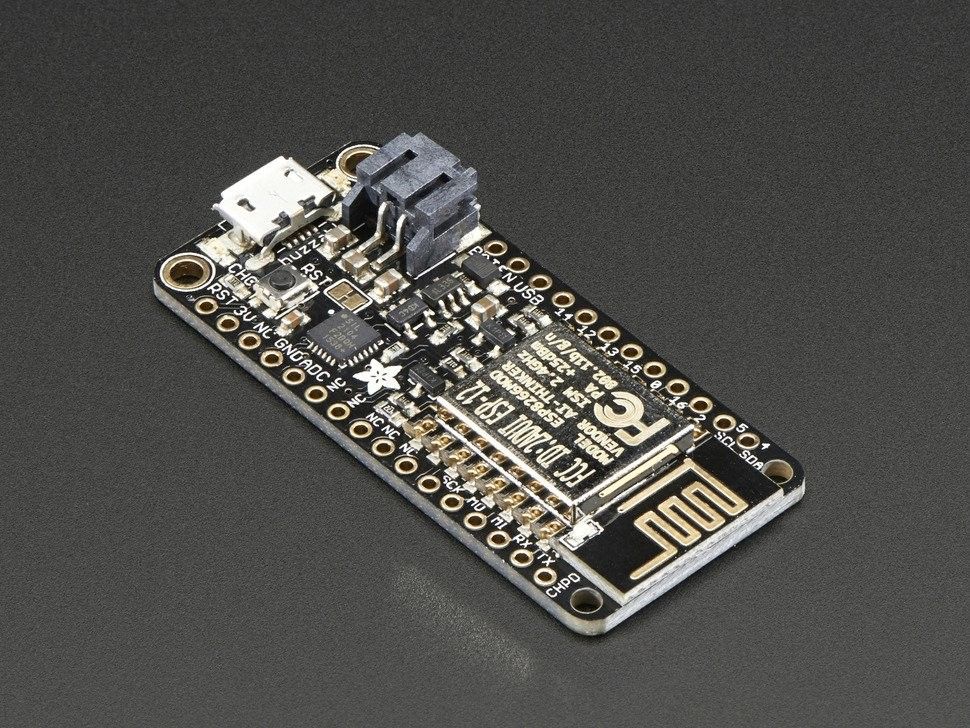

Adafruit Feather HUZZAH WIFI ESP8266

In stock 2 pcs

SKU#: ADA2821

Adafruit Feather HUZZAH WIFI ESP8266

Adafruit Feather HUZZAH WIFI ESP8266

In stock 2 pcs

SKU#: ADA2821

35,06 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

processor: ESP8266 80MHz 3.3V logic/power
flash memory: 4MB of FLASH (32 MBit)
board regulator: 3.3V 500mA, however 250mA current consumption is recommended so the regulator does not overheat. The regulator can be disabled by connecting the ENable pin to Ground.

GPIO pins: 9 pcs (SPI, I2C)
GPIO I/O voltage: 3.3V 12mA per pin
1 analog input pin A (ADC) 1.0V maximum

WiFi: ESP8266 WiFi module, 2.4Ghz, 802.11 b/g/n
USB 2.0 connector: microUSB 5V
reset button

charging connector (jst phr-2), which can be connected to a 4.2/3.7V Lithium Polymer (Lipo/Lipoly) or Lithium Ion (LiIon) battery. Charge current 100mA when power is taken from USB. Check battery polarity, as a reversed battery will damage the board.

board dimensions: 51 x 23 x 8 mm
weight: 6g

includes 2 pcs 16-pin header

link: https://cdn-learn.adafruit.com/downloads/pdf/adafruit-feather-huzzah-esp8266.pdf

Product Information

Availability In stock
Manufacturer Adafruit
Product path Home Development Cards ESP Adafruit Feather HUZZAH WIFI ESP8266
SKU ADA2821
Attributes
- Click for more details https://www.adafruit.com/product/2821
- Supplier code Adafruit 2821
