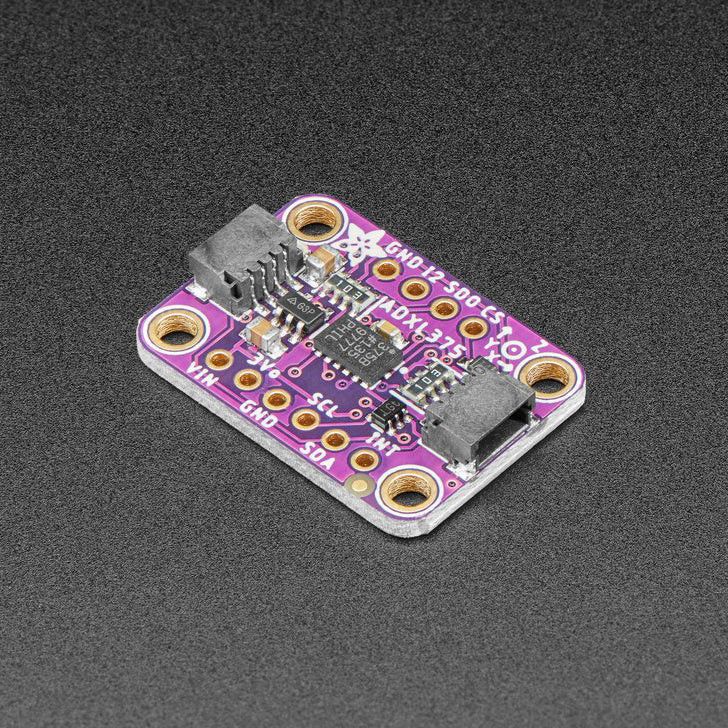

The Adafruit ADXL375 accelerometer offers a wide measurement range up to 200 g on three axes (X, Y, Z). It belongs to the same family as the ADXL345 and ADXL343, but this model has a fixed 200 g measurement range. This makes it ideal for applications that require detection of very high accelerations, impacts, or vibrations.
The sensor supports both I2C and SPI interfaces, and its two interrupt pins can be flexibly configured for different events. Built-in motion and impact detection simplifies deployment. Adafruit’s breakout board includes all necessary supporting electronics and a STEMMA QT/Qwiic connector for solderless connection. Ready-made Arduino and CircuitPython libraries are available, and the sensor also works with Raspberry Pi and other Linux-based boards using the Blinka library.
The sensor is delivered fully assembled.
Technical specifications:
- I2C address: 0x53 (default) or 0x1D
- Measurement range: fixed ±200 g
- Bandwidth: up to 1 kHz
- Built-in motion and impact detection
- Operating modes: SPI (3- or 4-wire) and I2C
- Temperature range: −40°C … +85°C
- Shock tolerance: up to 10,000 g
- Dimensions: 25.6 × 17.7 × 4.6 mm
- Weight: 1.0 g
Package includes:
- Adafruit ADXL375 accelerometer
- pin header
