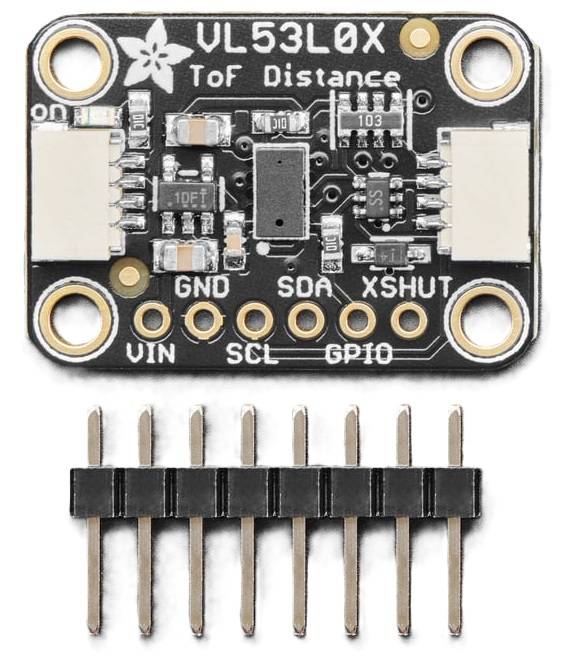

Adafruit 3317 VL53L0X ToF laser distance sensor

Adafruit 3317 is a Time-of-Flight (ToF) distance sensor module based on the VL53L0X chip. The sensor measures distance using an invisible laser and is suitable for robotics, automation and object distance detection.

Features

• Sensor: ST VL53L0X
• Measurement principle: Time-of-Flight (ToF)
• Measuring range: approximately 30–1000 mm
• Interface: I²C
• Operating voltage: 3–5 V
• Built-in voltage regulation and logic level shifting
• Compatible with 3,3 V and 5 V systems
• Arduino-, Raspberry Pi-, Python- and CircuitPython-compatible
• STEMMA QT / Qwiic connectors

Applications

• Robotics
• Obstacle detection
• Distance measurement
• Prototypes and embedded systems
