FT232H USB Breakout (STEMMA QT) — technical summary

Adafruit FT232H provides a computer or workstation with a direct interface to the most common embedded serial protocols. The device is suitable for prototyping, testing and automated measurement and programming environments where immediate control of I2C, SPI or GPIO connections is required without a separate microcontroller.

Key features

• MPSSE-based FT232H enabling SPI, I2C and serial communications to be used directly from the host computer.
• Versatile GPIOs for testing, controlling interfacing logic and reading signals.
• STEMMA QT connector plug-and-play for I2C modules and sensors following common industrial cabling standards.
• Modern physical connector the USB-C receptacle variant eases connection to modern devices and cable management.

Usage and integration

The module is typically used on development desks with drivers and Python libraries. The device works in Windows, Mac and Linux environments and supports Adafruit’s guide and library code which speeds prototype development. The FT232H can operate either in UART mode or in MPSSE mode which provides higher-level I2C/SPI functionality. Note that UART mode and MPSSE mode are not available simultaneously.

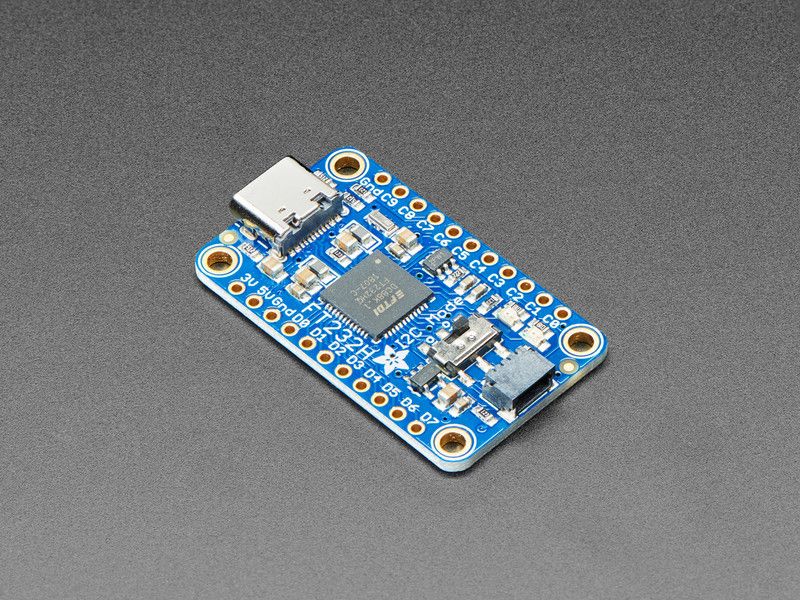

Connections and hardware layout

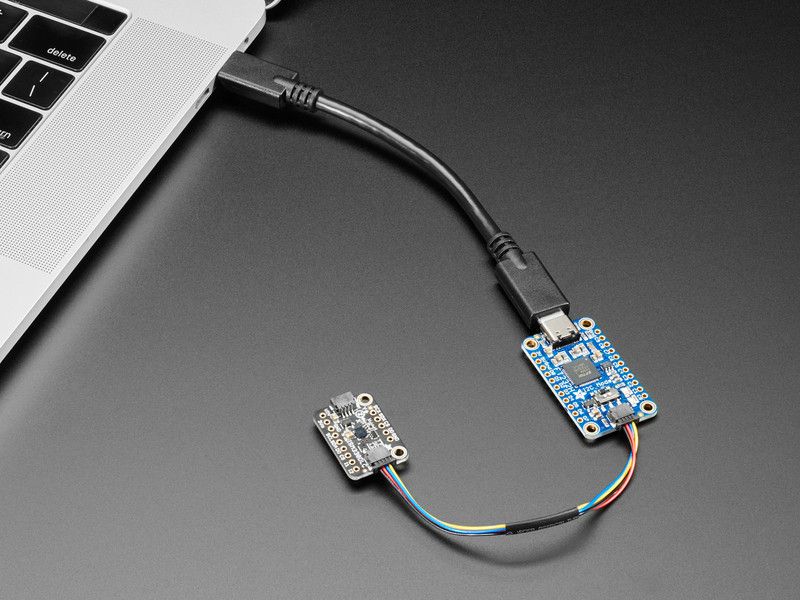

• STEMMA QT 4-pin allows direct connection to I2C-based sensors and displays without additional wiring harnesses.
• USB-C port provides a reliable connection to modern host devices.
• EEPROM enables storing device configuration directly on the breakout.

Technical specifications

• Dimensions: 23mm x 38mm x 4mm
• Weight: 3.4g
• 3V power output pin up to 500mA

Suitability and notes

This breakout is intended for technical users, developers and system integrators who need direct access to serial protocols without a microcontroller intermediary. We recommend confirming driver and library support for your target environment before production use. The device works well in small production test environments as an aid for software connections and firmware flashing.

Summary

The Adafruit FT232H USB Breakout (STEMMA QT) is a compact multi-protocol interface that combines a USB-C connector with MPSSE capability and STEMMA QT compatibility. It is a practical tool for prototyping, hardware testing and integration into automation solutions that require flexible I2C and SPI handling directly from the host.
