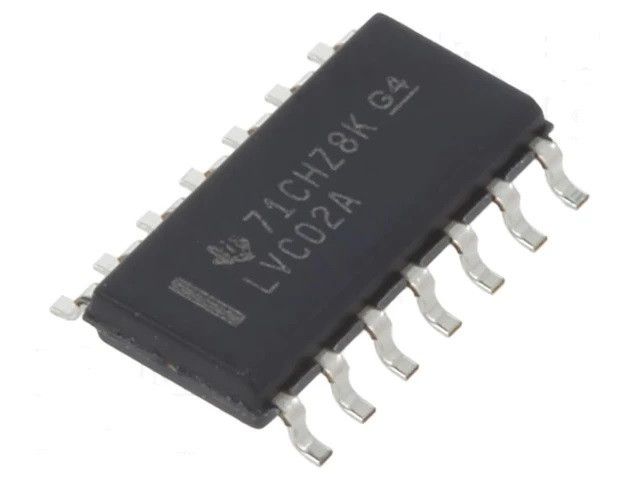

The SN74LVC02ADR is a quadruple 2-input Positive-NOR Gate. The devices perform the Boolean function Y = (A + B) or Y = A • B in positive logic. The device operates at a voltage range of 1.65 to 3.6V with inputs accept voltages to 5.5V and maximum tpd of 4.4ns at 3.3V.

• <0.8V at VCC = 3.3V, TA = 25°C typical VOLP (Output ground bounce)
• >2V at VCC = 3.3V, TA = 25°C typical VOHV (Output VOH undershoot)
• Latch-up performance exceeds 250mA per JESD 17
