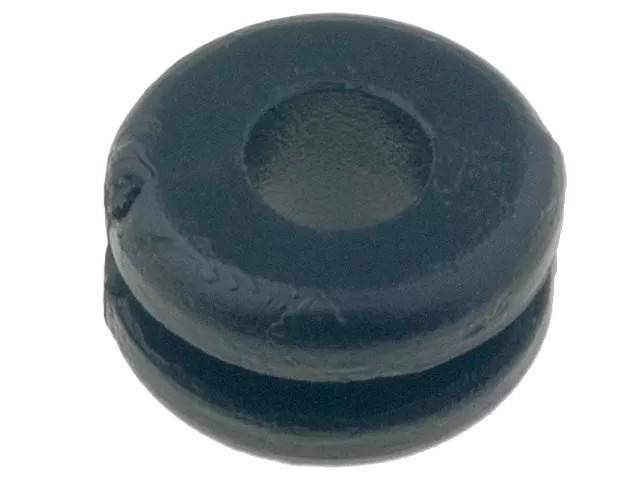

HellermannTyton 633-02020 HV1201B cable grommet 6,4 mm
HellermannTyton HV1201B is a black cable grommet made of flame-retardant PVC material to protect cables and wires from sharp edges. Suitable for a 6,4 mm mounting hole and for 4–5 mm cables.
Features
- Product number: 633-02020
- Manufacturer's type: HV1201B-PVC-FR-BK
- Mounting hole diameter: 6,4 mm
- Cable diameter: 4–5 mm
- Outer diameter: 9,5 mm
- Height: 6,5 mm
- Maximum panel thickness: 2,5 mm
- Material: flame-retardant PVC (PVC-FR)
- Color: black
- Hardness: Shore A 55 ±5
- Operating temperature: -30...+60 °C
- Flammability class: UL 94 V-0
- RoHS compliant
- EAN / GTIN: 4031026186252
- Country of origin: Germany (DE)
Applications
The grommet protects cables and wires from abrasion and mechanical stress when passing through a hole in a metal panel. Suitable for electronics, electrical and automotive applications.
