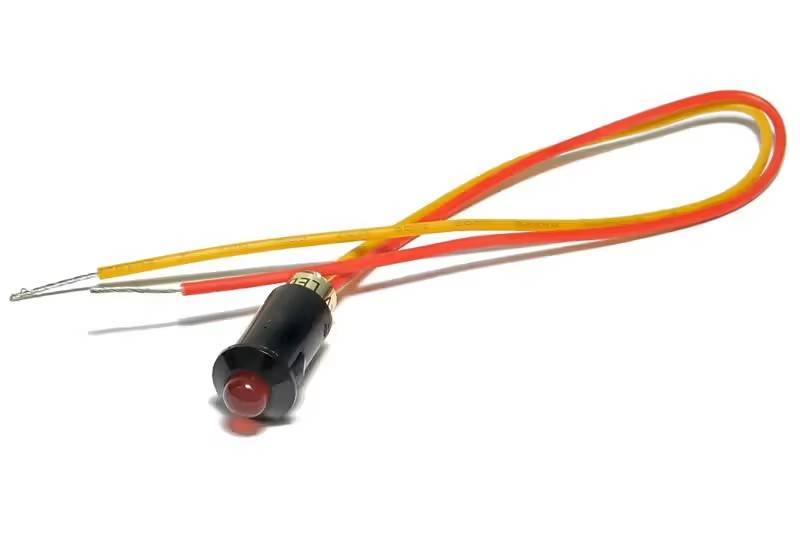

SCI R9-73L-11-24RED – red LED indicator 24 VDC

SCI R9-73L-11-24RED is a panel-mount red LED indicator for a 24 VDC supply voltage. The compact indicator is suitable for status indication in control, automation and equipment panels.

Technical specifications

• Manufacturer: SCI (Shin Chin Industrial)
• Manufacturer part number: R9-73L-11-24RED
• Light source: LED
• Color: red
• Supply voltage: 24 VDC
• LED diameter: 5 mm
• Panel cut-out: Ø 8,2 mm
• Maximum panel thickness: 2 mm
• Housing material: polyamide
• Housing color: black
• Connection: wires
• Wire length: 170 mm
• Conductor: 24 AWG
• Protection rating: IP40
• Operating temperature: -20...+80 °C
• Flammability rating: UL94V-2

Applications: control panels, switchboards, automation equipment, machines and other 24 VDC systems where a clear red status indication is required.
