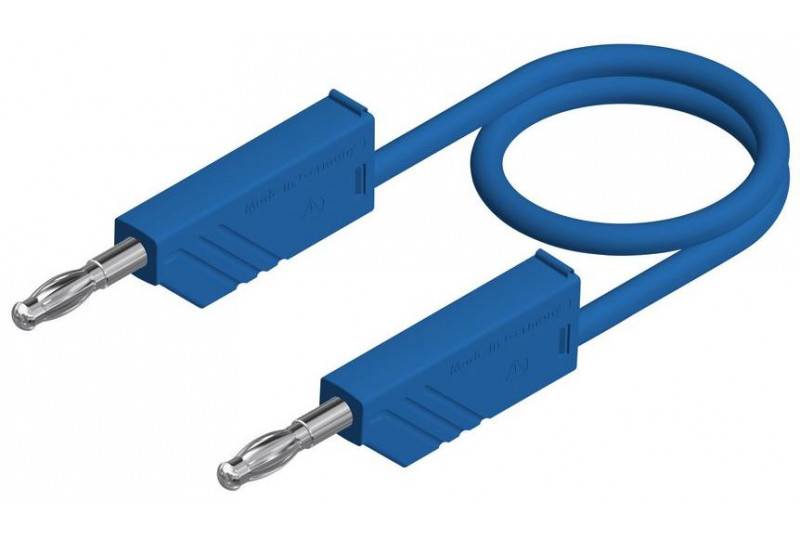

Hirschmann MLN 200/1 BL test lead 2 m blue (934065102)

Hirschmann Test & Measurement MLN 200/1 BL is a high-quality and very flexible test lead for laboratory, service and measurement applications. The cable has spring-loaded 4 mm banana plugs at both ends and stackable 4 mm safety sockets, allowing multiple leads to be chained. Double PVC insulation and an integrated color layer help detect insulation damage quickly.

Features

• Length: 2 m
• Color: blue
• Conductor cross-section: 1,0 mm²
• 4 mm banana plug and stackable 4 mm socket at both ends
• Spring-loaded contacts for reliable contact
• Highly flexible, double-insulated PVC cable
• Nickel-plated connectors
• Rated current: 16 A
• Rated voltage: 30 VAC / 60 VDC
• Operating temperature: -15 ... +70 °C

Technical specifications

• Manufacturer: Hirschmann Test & Measurement
• Manufacturer part number: 934065102
• Series: MLN 200/1
• Connector type: 4 mm banana plug, straight
• Contact material: brass / beryllium copper
• Contact plating: nickel-plated
• Insulation material: PVC
• Test lead category: CAT 0

Applications

• Multimeters and laboratory measuring instruments
• Electronics testing and servicing
• Industrial measurement systems
• Development and prototype work
