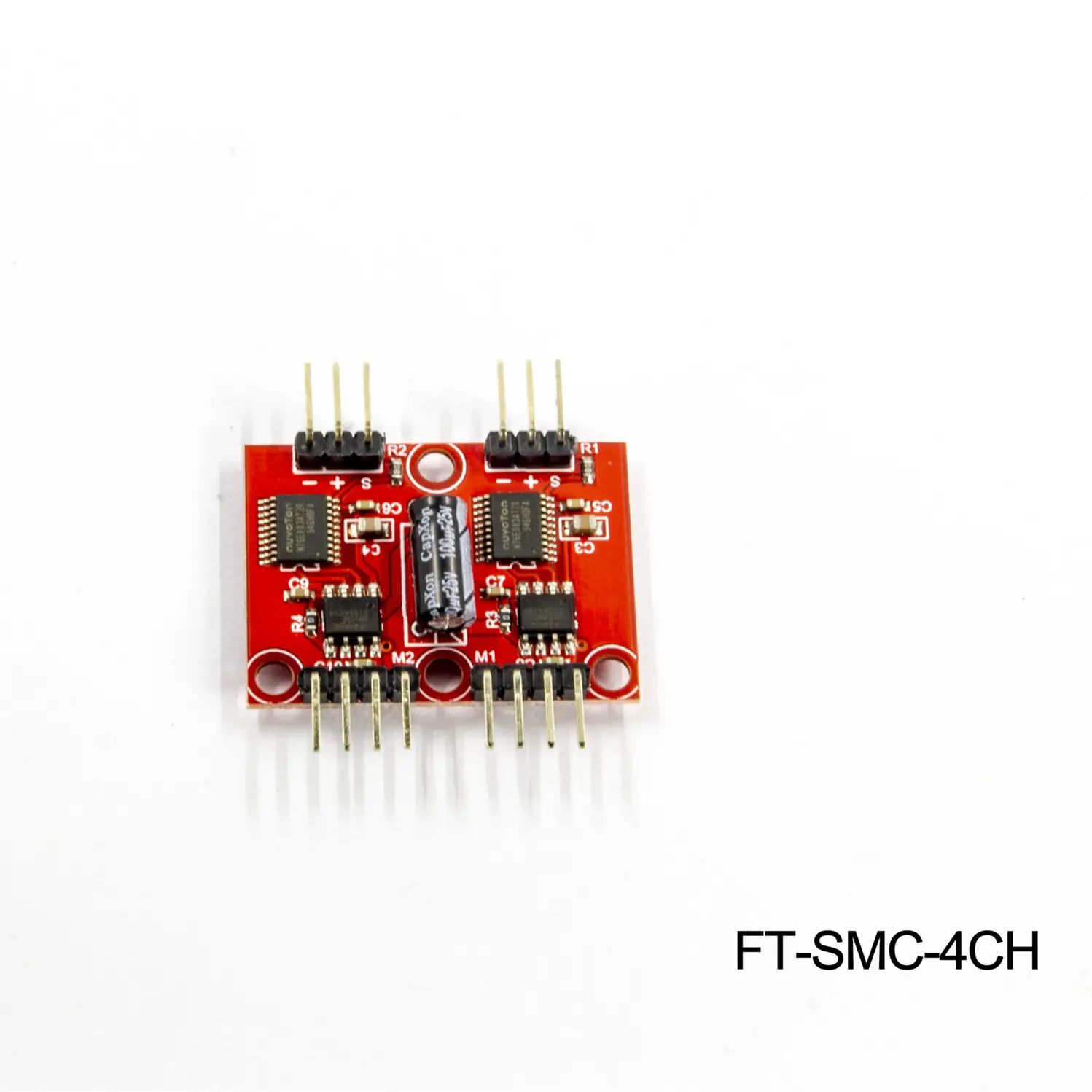

Features

• Reprogrammable with FEETECH programmer
• Easy to control 4CH DC motor
• Controls a DC motor for bidirectional continuous rotation
• Speed is a linear response to PWM
• Holes for four mounting screws
• Easy to connect to any Arduino microcontroller or PWM-capable device
• Weighs only 3,5 g
• Applicable to various small mobile platform robots

Specifications

• Weight: 3,5g
• Dimensions (L*W*H): 34mm * 25mm * 7.5mm
• Controller: STM8F003F3P6
• Operating voltage range: 4V~9V (2CH + and - combined together)
• Recommended voltage: 6V
• IDLE current: 10Ma
• 1CH continuous load current: 1.3A
• Operating temperature: -5℃~60℃

Communication protocol

• The servo motor controller is controlled by pulse width modulation.
• Rotation speed and direction are determined by the high pulse duration, in the 1000us–2000us range.
• To keep rotation smooth, the servo requires a 20 ms pause between pulses.
• When the pulse length decreases from 1500us, the servo will gradually start rotating faster counterclockwise.
• Conversely, when the pulse length increases from 1500us, the servo will gradually start rotating faster clockwise.
