Features

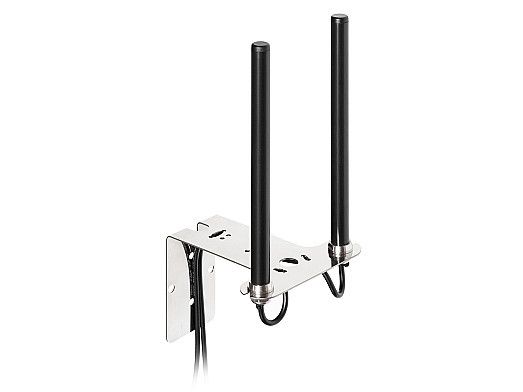

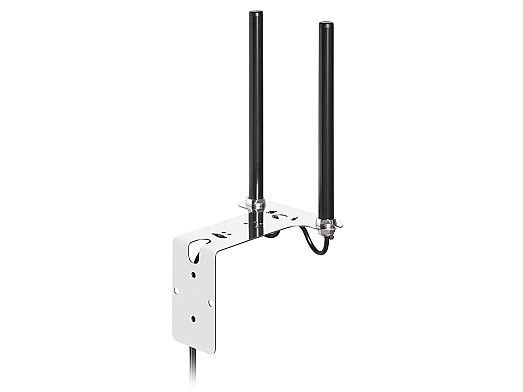

High-performance wall-mounted antenna designed for 5GNR and 4G LTE frequencies as well as 3G and 2G mobile networks. 2J2183Ba-B17H is a high-performance, ground-independent wall-mounted antenna that enables flexible installation options for various environments.
Cables 1 and 2 support 5GNR connections and cover the following frequency bands:
- 617–960 MHz
- 1427–2690 MHz
- 3300–5000 MHz
- 5150–5925 MHz
This antenna provides up to 4 dBi peak gain and uses linear polarization with omnidirectional radiation. The antenna efficiency is approximately 66.6%, ensuring reliable and consistent signal reception.
Application examples
The 5GNR antenna can be used in multiple applications that require high data rates, low latency and reliable connectivity in 5G networks. Common use cases include:
- "Smart cities": IoT devices, autonomous vehicles and other applications that require fast connectivity.
- Industrial automation: Real-time monitoring, control and automation of manufacturing processes.
- Entertainment: Online gaming, virtual reality and high-definition content streaming.
- Traffic: Connected vehicles, intelligent transport systems and traffic management.
- Public safety: Intelligent surveillance, emergency response and disaster management — providing reliable and real-time communication for first responders.
Installation / Environment
The wall-mount and ground-independent design make the antenna ideal for confined spaces or locations where conventional ground-level installation is not possible. Custom cable and connector options enable easy integration with different devices and systems. The antenna is IP67-rated, ensuring durability and suitability for harsh outdoor conditions.
The standard cable length is 300 cm, and other lengths are available on request. LL195 cable is used by default, but other options are also available. The antenna is compatible with most RF connectors, and an SMA male connector is used as standard.
The dimensions of the 2J2183Ba-B17H antenna are 325 × 135.5 × 155 mm (220 × Ø 16 mm). The operating temperature range is -40 – +85 °C and the product is RoHS-compliant.
Technical specifications
- Technologies: 5G, 4G, 3G and 2G
- Standards: 5GNR / 4G LTE / FirstNet / CBRS / LPWA / CAT-X / CAT-Mx / CAT-NBx / NB-IoT / 3G / 2G
- Frequency bands (MHz): 617–960, 1427–2690, 3300–5000, 5150–5925
- Return loss (dB): ~-8.3, ~-13.0, ~-14.1, ~-11.9
- VSWR: ~2.4:1, ~1.8:1, ~1.7:1, ~1.9:1
- Efficiency (%): ~66.6, ~62.6, ~40.6, ~32.4
- Peak gain (dBi): ~3.9, ~4.0, ~3.9, ~3.9
- Impedance (Ohm): 50
- Polarization: Linear
- Radiation pattern: Omnidirectional
- Max. input power (W): 35
