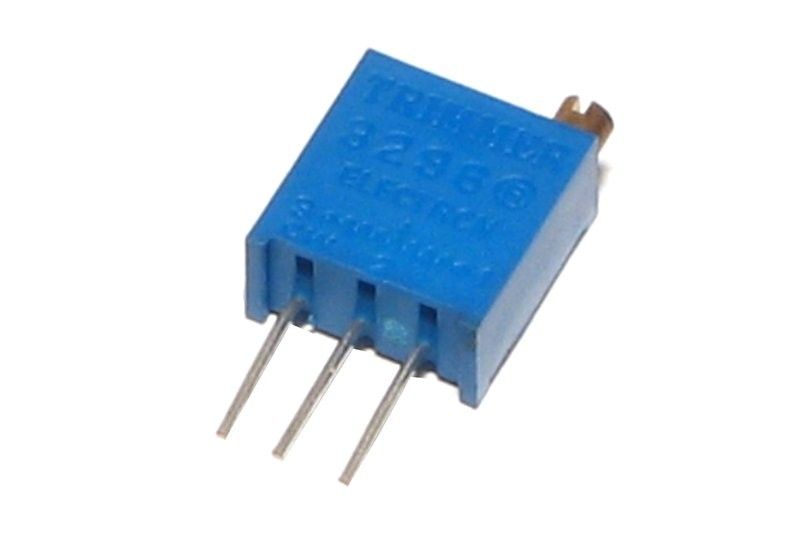

28-TURN TRIMMER RESISTOR: 2Mohm

In stock 13 pcs

SKU#: TRIM-MK-PYSTY-2M

28-TURN TRIMMER RESISTOR: 2Mohm

28-TURN TRIMMER RESISTOR: 2Mohm

In stock 13 pcs

SKU#: TRIM-MK-PYSTY-2M

resistance: 2,0 Mohm
power rating: 0,5W
tolerance: ±10%
voltage rating: 300VDC
number of turns: 28 ±2
dimensions: 10 x 9,5 x 4,85 mm
leads: Ø 0,5 x 5 mm
lead spacing: 100 mils (= 2,54 mm)

1,26 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

resistance: 2,0 Mohm
power rating: 0,5W
tolerance: ±10%
voltage rating: 300VDC
number of turns: 28 ±2
dimensions: 10 x 9,5 x 4,85 mm
leads: Ø 0,5 x 5 mm
lead spacing: 100 mils (= 2,54 mm)

Product Information

Availability In stock
Manufacturer Lievore (Electron)
Product path Home Components Passive Components Trimmer Resistors Multi-turn trimmers 28-TURN TRIMMER RESISTOR: 2Mohm
SKU TRIM-MK-PYSTY-2M
Attributes
- Resistance 2,0Mohm
- Manufacturer's model 3296W
