Note! The USB cable is not included in the package and must be purchased separately.

Features

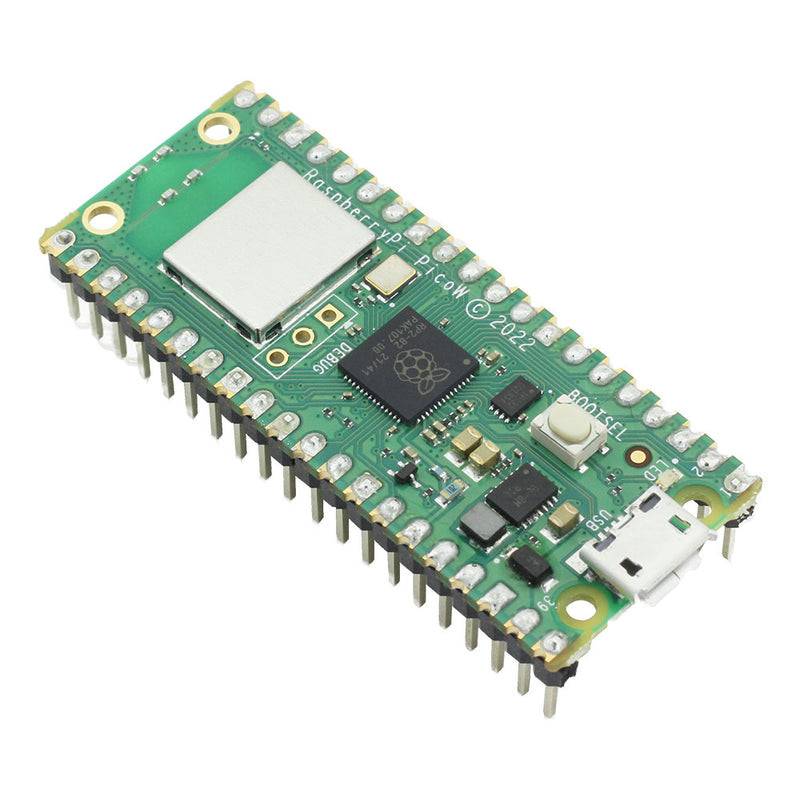

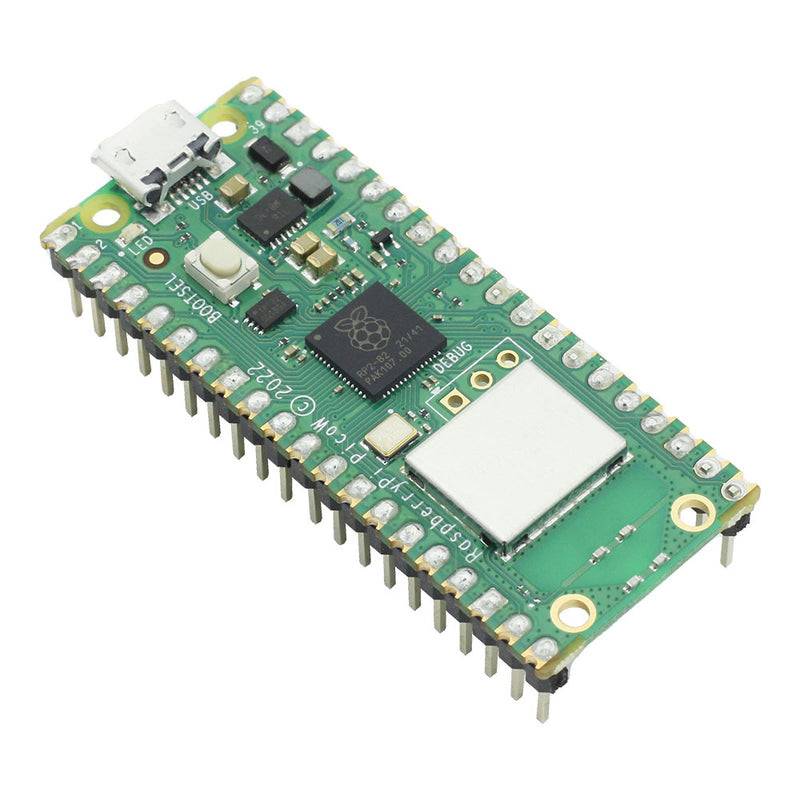

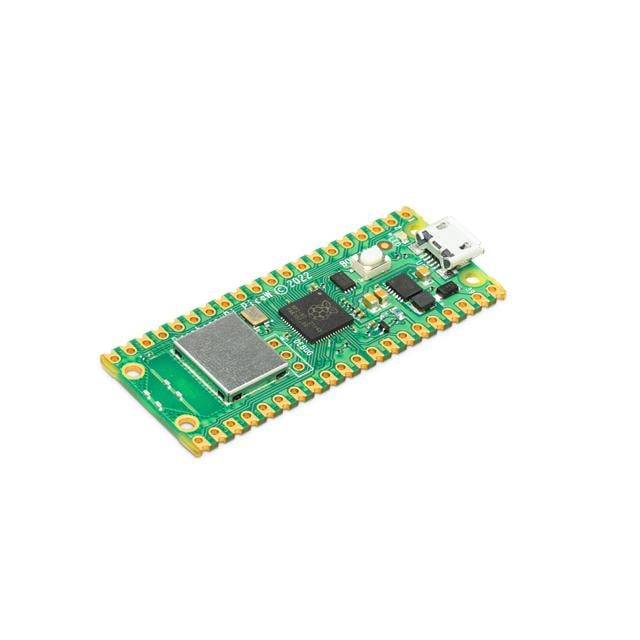

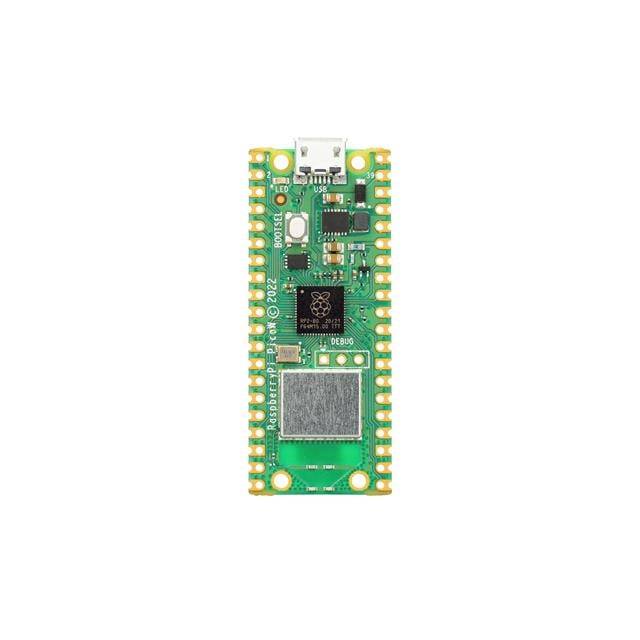

• The Raspberry Pi Pico W, with headers pre-soldered, allows users to easily add wireless connectivity to projects. This makes it ideal for wirelessly controlled builds and IoT projects.
• Built-in single-band 2.4 GHz wireless connectivity (802.11n) via the Infineon CYW43439 wireless chip. With WPA3 & soft access point supporting up to 4 clients.
• The Raspberry Pi Pico platform is a new high-performance microcontroller board featuring the Pi-designed ARM-based dual-core RP2040 chip.
• RP2040 is a Dual ARM Cortex-M0+ @ 133MHz chip.
• The chip contains 256kB of SRAM.
• Supports up to 16 Mb of off-chip Flash memory.
• Pre-soldered header pins, so no user soldering is required.
• Micro-USB port for power and data (USB 1.1 device and host support).
• Drag & drop programming over USB.
• Low-power sleep modes and deep sleep.
• On-chip real-time clock and timer.
• Temperature sensor.
• Hardware-accelerated floating point libraries on-chip.

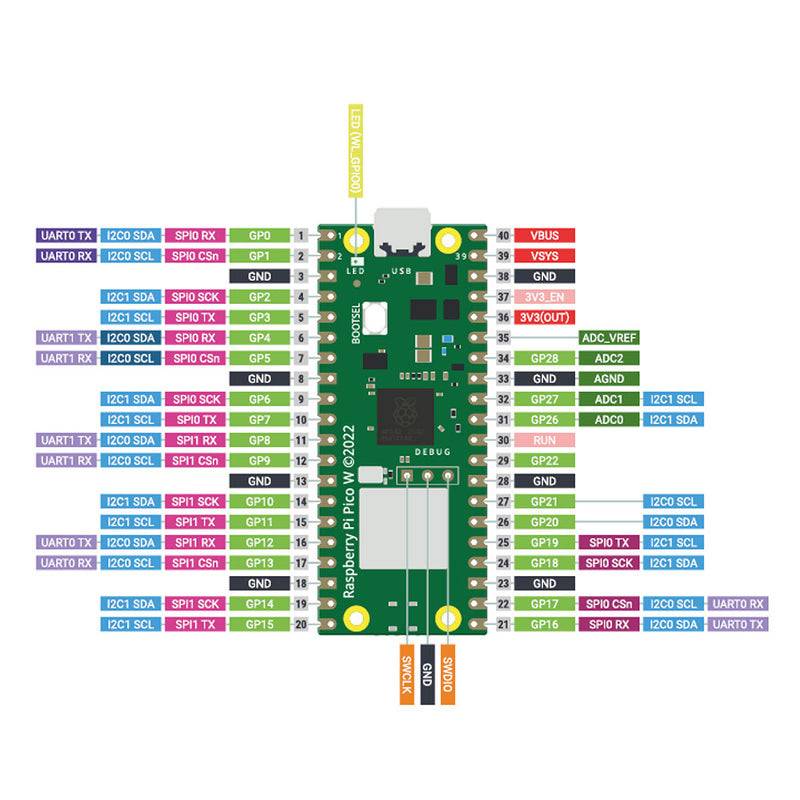

• Flexible I/O, including 26 multi-function GPIO pins, 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels.
• 8 × programmable I/O (PIO) state machines for custom peripheral support.
• Program it with the C/C++ SDK or MicroPython.
• Pico W is supplied with pre-soldered header pins compatible with breadboards and standard jumper wires.

Contents

• 1 x Raspberry Pi Pico W

Dimensions

• Length: 51.3mm
• Width: 21mm
• Height: 11.12mm
• Weight: 6g

Documentation

• Raspberry Pi Pico W Datasheet
• Raspberry Pi Pico W Pinout
• Connecting to the Internet with Raspberry Pi Pico W - Getting the Raspberry Pi Pico W online with C/C++ or MicroPython
• RP2040 Datasheet
• Hardware design with RP2040
• Getting started with the Raspberry Pi Pico - C/C++ development with the Raspberry Pi Pico and other RP2040-based microcontroller boards.
• Pico C/C++ SDK - Libraries and tools for C/C++ development on RP2040 microcontrollers.
• Pico Python SDK - MicroPython environment for RP2040 microcontrollers.
• Download STEP file
• Download Fritzing part
• Note: Although not officially supported, there is a Pico Setup for Windows installer that automates the installation of the C/C++ SDK on Windows 10.
• Documentation home.
• Thonny Editor - Python IDE for beginners.
